BESS Integration: Deploying All-in-One Solar-Storage-Charging Stations in Power-Constrained Regions

Energy Infrastructure | BESS & Solar-Storage-Charging | Updated September 2026

What “Power-Constrained” Actually Means

The phrase covers three distinct problems, and the right architecture depends on which one you face. The first is capacity scarcity: the local transformer or feeder simply cannot deliver the kilowatts a charging site needs. A utility connection that supplies 100kW cannot power a 240kW charging hub, and upgrading it may take 18–36 months or be refused outright in areas where the distribution network is already at its limit. The second is stability: weak networks suffer voltage sag and frequency deviation under sudden loads, so a fast charger that pulls 150kW in under a second can destabilize a rural feeder. The third is reliability: regions with rolling blackouts, load-shedding schedules, or frequent outages make grid-dependent charging a business risk.

Connection queues deserve special attention because they are often the binding constraint in practice. In many emerging and fast-growing markets, distribution utilities publish connection wait times of one to three years for new commercial loads, and transformer capacity is allocated on a first-come basis. A solar-storage-charging station changes the conversation: because it presents a flat, capped, and partly self-supplied load to the grid, it can often connect under a small-service or generation-interconnection path that clears in weeks, not years. This is why BESS integration has become the enabling technology for EV infrastructure in South Asia, Southeast Asia, Africa, and parts of Latin America — regions where vehicle adoption is accelerating faster than distribution networks can be reinforced.

The All-in-One Architecture: One Deployment, Three Energy Assets

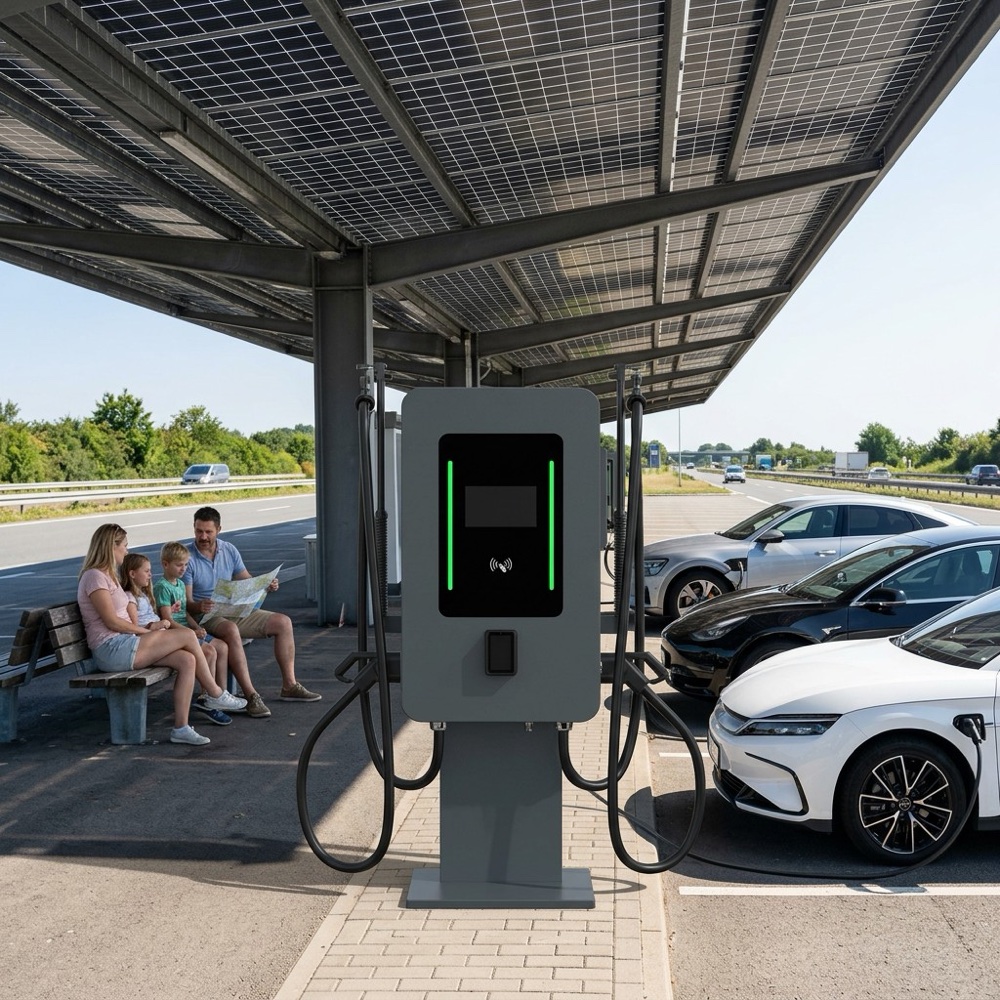

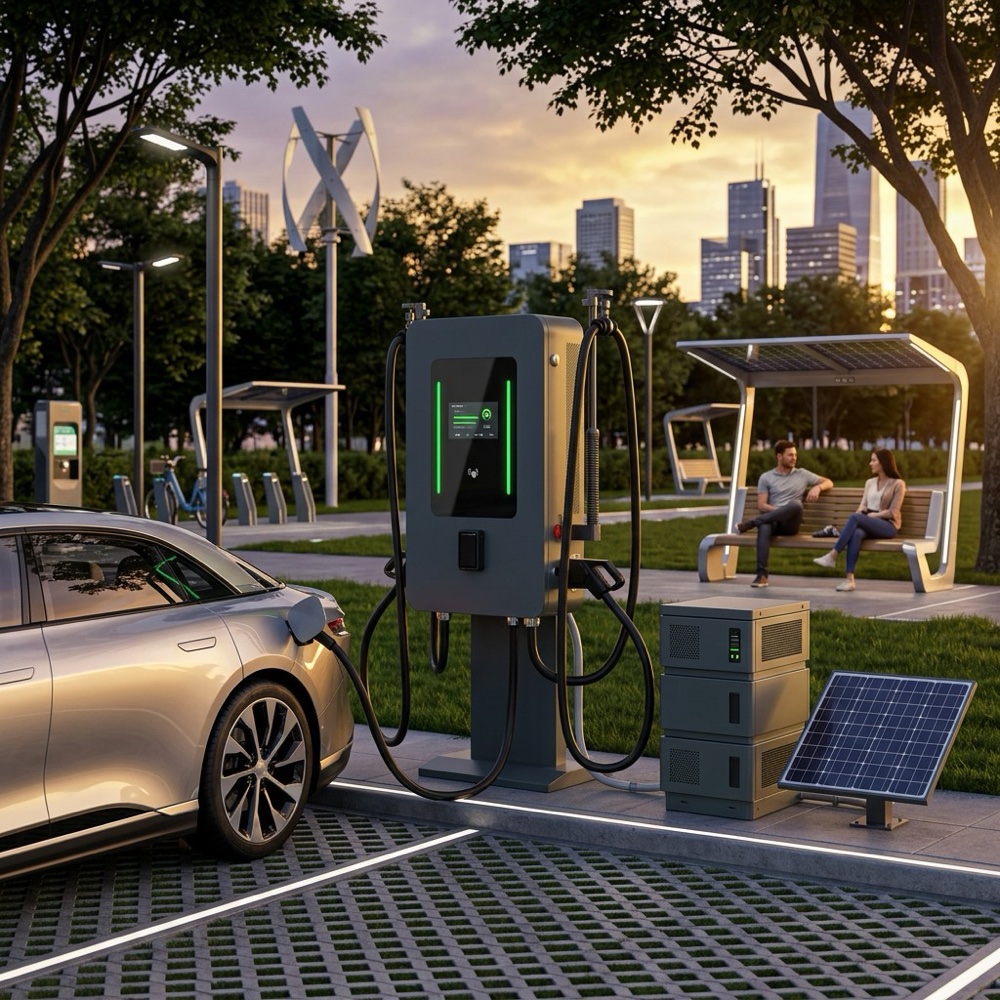

An integrated station packages four subsystems into one skid or container: PV array (typically a canopy or rooftop), BESS with its inverter, DC fast chargers, and the EMS that orchestrates them. Integration is the point: the units arrive factory-tested as a system, share a single grid connection, and present one control interface to the operator.

AC-Coupled vs. DC-Coupled Design

The first architecture decision is where the battery sits relative to the PV inverter. In an AC-coupled system, PV and battery each have their own inverter and meet on the AC bus; it is simple, component-standards-compliant, and easy to service, but solar energy pays two conversion losses on its way to the battery. In a DC-coupled system, the PV DC output and the battery share the storage-side converter, so solar charges the battery directly with one conversion — recovering 3–6% round-trip efficiency — and the combined DC bus feeds the charger’s DC input with minimal conversion. For all-in-one stations where solar-to-vehicle and solar-to-battery flows dominate, DC coupling is increasingly the default, while AC coupling remains attractive where grid arbitrage and component flexibility matter more than raw efficiency.

Shared Power Electronics and One-Line Control

The integration value extends beyond efficiency. A single integrated controller manages the power flow so that the site never exceeds its grid contract: when solar is strong, the EMS prefers it; when the battery is full, it exports or curtails; when the grid is weak, the battery covers the deficit. The chargers, for their part, must accept the power the system can supply. Stations such as advanced dual-gun EV wallbox fast charging stations with intelligent load balancing are designed for exactly this mode: they modulate each gun’s output in real time against a site-level power budget rather than drawing a fixed nameplate load. Without that capability, the BESS would be forced to cover unmanaged peaks, doubling the storage size required.

How the BESS Solves the Three Binding Constraints

Capacity scarcity is solved by time-shifting: the battery charges during windows when the connection is free — solar midday or grid off-peak — and discharges during charging peaks. The required grid capacity drops to the average daily energy draw divided by the available charging hours, plus a safety margin, instead of the instantaneous peak. In a typical depot scenario this cuts the connection size by 50–70%. A 240kW charging hub on a 100kW connection becomes feasible when the station has 300–500kWh of usable storage and a daytime solar input to refill it.

Stability is solved by buffering. The BESS inverter behaves like a controlled generator: it can ramp its output smoothly, provide voltage support, and absorb the inrush that would otherwise distort the feeder waveform. In island-capable configurations the station can disconnect from the grid entirely and continue charging from solar and storage, which also addresses the reliability constraint. Even without intentional islanding, a battery-backed site rides through brief dips and sags that would reset a grid-only charger mid-session, protecting both revenue and driver trust.

The commercial consequence is that BESS integration turns a site that the grid says “no” to into a site that the grid accepts. For operators in constrained regions, that is the difference between a pipeline of viable projects and a portfolio of rejections.

Grid-Only vs. Grid+BESS vs. All-in-One Solar-Storage-Charging

The middle column is worth a note: grid-plus-BESS without solar is a legitimate first phase. It captures the capacity and stability benefits immediately, uses a smaller footprint, and can be upgraded to solar later behind the same EMS. The all-in-one column becomes the right choice when solar resource is good, when diesel or grid energy prices are high, or when the site must present a single integrated permit and a single supplier warranty.

Sizing the BESS for Charging Loads

Storage sizing for charging follows the energy gap, not the power peak. The first step is to define the site’s required daily throughput — the kilowatt-hours vehicles need per day, and the window in which they need it. The battery must cover the difference between that demand and what solar plus grid can supply during the charging window. In practice, three parameters dominate: usable energy (kWh), power rating (kW), and the grid capacity limit. The battery’s power rating must exceed the largest single charging step it must cover; its usable energy must cover the full evening peak block, typically 2–4 hours at the site’s average charging rate. A depot charging 600kWh per night with a 100kW grid limit and no night solar needs roughly 400–500kWh of usable storage, filled during the day from grid off-peak and PV.

C-rate matters as much as capacity. A 0.5C battery delivers its full rated power for two hours; a 1C battery for one hour. Charging applications are short, intense, and repeated, so a battery rated for 1C discharge with a daily cycling depth of 70–80% is the common specification, balancing cost against cycle life. The EMS should also reserve a small state-of-charge band for grid-support and degradation headroom. Finally, thermal and fire compliance are not afterthoughts: BESS cabinets at charging sites must meet local fire codes, maintain setbacks, and carry integrated fire suppression — requirements that vary by region and must be verified before the container is ordered, not after it arrives at customs.

Deployment and Regulatory Considerations

Integrated stations change the permitting conversation. Because the system includes generation, storage, and load, it may trigger multiple regulatory regimes: distributed-generation interconnection, storage-specific fire and grid codes, and EVSE certification. Operators should map these early, because the storage component usually dominates the timeline. Islanding, if required, adds transfer-switch and anti-islanding compliance that must be designed into the inverter spec. On the electrical side, the site must be engineered so that the charger, the battery inverter, and the PV system all coordinate through the EMS with a single point of grid protection — the classic failure mode of ad-hoc integrations is two inverters fighting over voltage control, which an integrated station design eliminates by construction.

Charger selection is part of the compliance picture. Regional connector and certification requirements vary, and the station integrator should supply chargers matched to the market: CCS2/GBT Type 2 dual-gun wall-mounted DC fast charging stations and OCPP 1.6J dual-connector wall-mounted DC fast charging stations cover the dominant CCS2 and GBT markets while exposing the metering and control interfaces the EMS needs. Where access control matters for semi-public fleet sites, RFID-controlled dual-gun wall-mounted DC fast charging stations add driver authorization without complicating the energy management layer.

The B2B Economics in Constrained Regions

The business case in a power-constrained region is different from the demand-charge case in a mature grid — and often stronger. The first line of savings is avoided grid investment: no transformer upgrade, no long connection wait, no utility demand for network reinforcement contributions that can run into six figures. The second is diesel displacement: sites currently served by diesel generators — or that would be — replace fuel at USD 0.30–0.50/kWh with solar-plus-storage at USD 0.08–0.15/kWh, a saving that alone can pay back the storage in 3–5 years at high utilization. The third is revenue enablement: the station exists at all, generating margin that a grid-only design would forfeit to the connection queue.

For fleet operators, the integrated station also solves a scheduling problem: charging becomes predictable regardless of grid conditions, so depot dispatch is no longer hostage to load-shedding announcements. Premium dual-gun wallbox DC fast charging stations configured for fleet high-speed charging pair naturally with this model, because their session telemetry feeds the EMS’s load forecast and their dual guns let two vehicles share the stored energy intelligently when the battery is the binding constraint.

A 2026 Procurement Checklist

• Confirm the actual constraint — capacity, stability, or reliability — and model the architecture against it before inviting bids.
• Specify usable BESS energy and C-rate separately from nameplate kWh; degradation and depth-of-discharge policies are part of the spec, not fine print.
• Require charger-side power modulation (remote power limits over OCPP) so the EMS controls the load rather than reacting to it.
• Decide AC- vs. DC-coupling with efficiency math attached to the site’s actual solar-to-vehicle and solar-to-battery flow shares.
• Verify fire code and setback compliance for the BESS in the target jurisdiction before ordering the container.
• Contract the islanding capability explicitly if outage continuity matters; grid-tied hardware cannot be retrofitted cheaply.
• Insist on a single-system warranty: one responsible party for PV, storage, chargers, and EMS integration.

Frequently Asked Questions

Q1. How much grid capacity can an all-in-one station actually avoid?

With appropriately sized storage and solar, required grid capacity typically drops 50–70% versus grid-only design — for example, a 240kW charging hub operating on a 60–100kW connection. The exact figure depends on daily throughput, charging windows, and solar yield.

Q2. What is the difference between AC-coupled and DC-coupled BESS?

AC-coupled systems use separate inverters for PV and battery; DC-coupled systems share one converter, letting solar charge the battery with a single conversion. DC coupling recovers 3–6% round-trip efficiency in solar-heavy designs but AC coupling offers more component flexibility.

Q3. How large a battery do I need for a charging station?

Size the battery to cover the charging energy that solar and grid cannot supply during the peak window — typically 2–4 hours of the site’s average charging draw. A 600kWh-per-night depot with a 100kW grid limit usually needs 400–500kWh of usable storage.

Q4. Can the station keep charging during a grid outage?

Only with intentional islanding: transfer switching plus island-capable inverters specified at design time. Without it, grid-tied stations shut down with the grid for safety reasons. Islanding is a design decision, not an operating mode you can switch on later.

Q5. What charger features are essential for BESS integration?

Remote power-limit control over OCPP, session-level metering, and dual-gun load balancing. These let the EMS treat the chargers as controllable loads, which is what allows a small battery to serve a large charging demand safely.

Q6. How long does it take to deploy an all-in-one station?

Integrated skid- or container-based stations typically deploy in 8–16 weeks from order, compared with 18–36 months of grid upgrade time they avoid. Permitting for the storage component is usually the longest remaining lead item.

Q7. Is BESS integration only for emerging markets?

No. The architecture also pays in mature grids with long connection queues, high demand charges, or aging transformers. The difference is emphasis: mature markets lean on demand capping and arbitrage, constrained regions lean on capacity avoidance and diesel displacement.
