Charging in Extremes: Optimization Strategies for DC Fast Chargers in Ultra-Cold and Desert Climates
Quick Answer
DC fast chargers fail differently in ultra-cold and desert climates, and each environment needs its own optimization playbook. In sub-zero conditions, the bottlenecks are vehicle-side battery preconditioning, connector and latch icing, coolant viscosity, and reduced battery acceptance rates that can cut delivered power by 40–60% unless the charger and vehicle coordinate heating. In desert climates above 40–45°C, the bottlenecks are power-module thermal derating, dust ingress that blocks airflow, solar gain on enclosures, and accelerated aging of electrolytic capacitors and connector seals. The optimization toolkit combines climate-adaptive firmware, active liquid cooling, cold-weather kits, high-Ingress-Protection enclosures (IP55 and above), and site-level microclimate design such as canopies, orientation, and airflow management. This article details the failure physics of both extremes, maps the engineering countermeasures, and provides a comparison table plus a site-commissioning checklist that charge point operators can apply from Scandinavia to the Arabian Peninsula.
Key Takeaways
- Extreme cold cuts effective charging power by 40–60% when battery preconditioning is absent; charger-side cold-weather features and vehicle coordination recover most of that loss.
- Desert heat above 40–45°C triggers power-module derating, dust-blocked airflow, and accelerated component aging; active liquid cooling and IP55+ enclosures are the primary countermeasures.
- Climate-adaptive firmware — adjustable derating curves, thermal-proactive charge scheduling, and connector pre-heat logic — is as important as hardware in both environments.
- Site-level design (canopies, solar shielding, orientation, airflow routing, and snow/ice management) can shift a station’s effective operating envelope more than any single component upgrade.
- Specifying climate-hardened hardware and commissioning procedures upfront reduces MTTR and lifetime maintenance cost by 20–40% in extreme-climate deployments.
What Extreme Climates Actually Do to Charging Systems
The physics of charging is thermal physics. A DC fast charger converts kilowatts of electrical power with efficiency typically in the high 90s, which still means several kilowatts of waste heat per active charger that must be moved away from power modules, capacitors, and connectors. The same system that must shed heat efficiently at 45°C ambient must also keep critical fluids flowing and surfaces ice-free at −30°C. Climate extremes attack this thermal balance from opposite directions, producing two distinct failure profiles that require opposite engineering priorities.
Ultra-Cold Failure Modes
Cold does not primarily break the charger; it throttles the vehicle. Lithium-ion batteries at low temperature have sharply reduced charge acceptance: at −10°C a vehicle battery may accept only 50–70% of the power it accepts at 25°C, and at −20°C that figure can drop to 30–50%. The vehicle’s BMS limits charge current to protect against lithium plating, so a 150 kW-rated charger might deliver 60–90 kW until the battery warms. Charger-side cold failures are equally real: cable jackets stiffen, connector latch mechanisms jam with ice, charging cable liquid coolant thickens and can starve the cable of cooling, and condensation inside enclosures freezes onto electronics. Charging handles can freeze to the vehicle port if moisture is present, and snow can block ventilation grilles, starving airflow and triggering overtemperature protection in the middle of winter.
Desert and Extreme-Heat Failure Modes
Heat attacks the charger directly. Power electronics derate with rising ambient temperature — a module rated for full output at 35°C may deliver 70–80% at 45°C — and enclosure temperatures under direct sun can exceed ambient by 15–25°C. Electrolytic capacitors age roughly twice as fast for every 10°C of operating temperature, connector seals and cable jacketing embrittle, and fine dust accumulates on heat exchangers, converting a 100% airflow system into a 60% one within months if unfiltered. Sand and dust storms can penetrate inadequate enclosures, shorting connectors and clogging fans. Solar gain on dark enclosures compounds the problem, and thermal cycling between day and night accelerates solder-joint and connector fatigue.
Cold-Climate Optimization Strategies
For cold regions, the optimization stack runs from vehicle coordination down to site civil works.
Battery Preconditioning and Smart Session Start
The largest single lever is preconditioning: the vehicle heats its battery before or during the early phase of charging, often using charger power routed through the battery at a controlled rate. Chargers and networks that support ISO 15118-based session intelligence can negotiate a warm-up phase, monitor battery temperature telemetry, and ramp power only as the battery’s acceptance improves. Operators should also enable remote preconditioning via the app or fleet API so vehicles arrive at the charger with warm batteries. These measures recover 30–50 percentage points of delivered power in deep cold, and they are the difference between a 20-minute and a 45-minute session on the same hardware.
Cold-Weather Hardware Kits
Hardware countermeasures include: connector heaters and latch de-icers; low-temperature coolant formulations with pour points below −40°C; heated or insulated liquid-cooled cable runs; condensation management via breather valves and desiccant packs; snow shields over ventilation grilles; and parking-side heating or covered bays that keep the vehicle port area clear of ice. Enclosure heaters protect electronics from condensation and keep standby electronics within operating range.
Derating Curves and Firmware Logic
Modern chargers ship with ambient-temperature derating curves, but cold-climate operation also benefits from proactive firmware behavior: pre-heating the connector before plug-in, delaying high-power ramps until the battery telemetry confirms acceptance, and scheduling maintenance windows around the coldest hours. Monitoring platforms should track delivered-versus-rated power by ambient temperature so operators can distinguish cold-limited sessions from genuine hardware faults — a common source of false service tickets in winter.

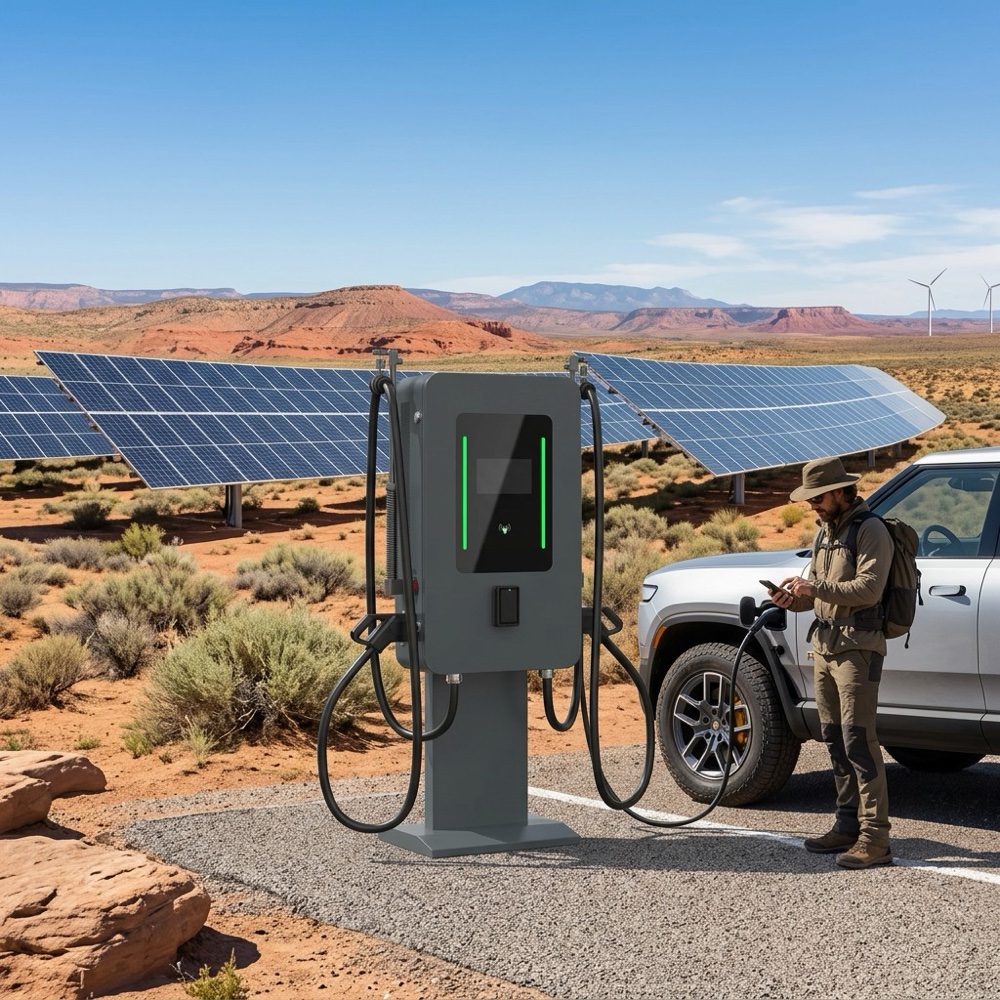

Desert and Extreme-Heat Optimization Strategies
For hot regions, the priority is removing heat and excluding dust, in that order.
Active Liquid Cooling and Thermal Design
Air-cooled power modules derate hard above 40°C; liquid-cooled systems maintain rated output across a wider ambient envelope because coolant moves heat to a remote, shaded heat exchanger with greater thermal capacity. For extreme-heat deployments, specify liquid-cooled power stages and liquid-cooled cables (which also reduces cable weight for drivers), verify heat-exchanger sizing for 45–50°C design days, and derate proactively in firmware rather than letting the hardware trip into thermal protection at random moments. Shade structures, light-colored or reflective enclosures, and orienting ventilation intakes away from prevailing hot winds cut enclosure temperature meaningfully.
Dust Management and Filtration
In desert environments, filtration is survival: high-grade particulate filters on intake paths, positive-pressure enclosures to keep dust out of electronics, and scheduled filter cleaning aligned with dust-storm seasons. Cooling fans and heat-exchanger fins must be accessible for cleaning, and operators should budget maintenance intervals 2–4 times denser than temperate sites during storm seasons. IP55-rated enclosures with filtered vents and sealed connector bays protect against wind-blown dust and the occasional rain event in humid Gulf climates.
Component Selection for Thermal Fatigue
Specify components rated for the daily thermal cycle: high-temperature electrolytic capacitors or film capacitors, silicone or high-temp jacketed cables, UV-stabilized enclosures, and connectors with robust sealing. Thermal cycling between 50°C days and 25°C nights, repeated thousands of times, is a silent killer of under-specified connectors and solder joints; derating components for the envelope rather than the average is the correct procurement posture.
Ultra-Cold vs. Desert: Engineering Requirements Comparison Table
| Dimension | Ultra-Cold Climates (≤ −20°C) | Desert Climates (≥ 45°C) |
|---|---|---|
| Primary bottleneck | Vehicle battery charge acceptance; connector icing | Power-module derating; dust-blocked airflow |
| Delivered power impact | 40–60% reduction without preconditioning | 20–30% derating at 45°C on air-cooled units |
| Thermal management | Battery heating, cable and connector de-icing, enclosure heaters | Active liquid cooling, shaded heat exchangers, solar shielding |
| Enclosure strategy | IP55+ with snow shields and condensation control | IP55+ with filtered positive-pressure airflow |
| Fluid management | Low-temperature coolant, anti-icing lubricants | High-temperature-rated seals and fluids |
| Firmware priority | Preconditioning coordination, power ramping with battery telemetry | Proactive derating curves, thermal-fault prediction |
| Maintenance cadence | Seasonal snow/ice checks; winter-focused inspection | 2–4× denser filter cleaning in storm season |
| Key component risk | Condensation freeze, latch and port icing | Capacitor aging, seal embrittlement, thermal cycling fatigue |
| Site design levers | Covered bays, heated surfaces, snow management | Canopies, orientation, reflective surfaces, wind routing |
| Monitoring focus | Delivered-vs-rated power by temperature; false-ticket filtering | Derating events, filter pressure drop, enclosure temperature |
The table makes the design posture clear: cold regions need thermal addition and protection from ice and condensation; hot regions need thermal removal and protection from dust and solar gain. Hardware that fails to address its climate’s dominant constraint will underperform regardless of the rest of the specification.
Site-Level Design and Commissioning for Extreme Environments
Beyond the charger itself, the site is the second half of the reliability equation. In cold climates, commission with covered or wind-shielded bays, position chargers clear of snow-plow routes, ensure drainage away from foundations (ice heave is a real structural risk), and validate connector handling procedures for gloved operators. In hot climates, orient enclosures to minimize afternoon sun, provide canopy shading that also protects drivers, route ventilation intakes away from dust sources and prevailing winds, and pressure-test enclosure seals during commissioning. In both environments, commissioning should include a thermal baseline: record enclosure temperature, derating behavior, and delivered-power curves across a full day so future anomalies are detectable against a known reference. Remote monitoring with climate-specific alerts — filter pressure, condensation alarms, sustained derating events — turns maintenance from reactive to predictive and is the single highest-ROI practice for extreme-climate fleets.
Choosing climate-hardened hardware is the foundation. IP55 weatherproof dual-gun wall-mounted DC EV charging points are specified for outdoor exposure in both snow and sand environments, and heavy-duty dual-gun wall-mounted DC fast charging piles for public highway stations bring the ruggedized construction that corridor deployments in extreme climates demand. CCS2/GBT Type 2 dual-gun wall-mounted DC fast charging stations with IP54 and CE ratings offer a proven mid-range enclosure class for less severe sites, while mini dual-gun DC fast charging stations with OCPP and IP55 outdoor ratings give operators a compact climate-hardened option for remote and space-constrained locations. Commercial-grade dual-gun wallbox DC charging stations with CE certification complete a portfolio that can be matched to the thermal envelope of each deployment site.
Frequently Asked Questions
Q1. How much does cold weather reduce DC fast charging power?
Without preconditioning, a vehicle battery at −10°C to −20°C may accept only 30–70% of rated power while the BMS protects against lithium plating. With charger-vehicle preconditioning coordination, delivered power typically recovers to 80–95% of rated within the first 5–10 minutes of a session.
Q2. Why do desert chargers derate in high heat?
Power electronics and cables must stay below rated junction and insulation temperatures. As ambient temperature rises toward 45°C and above, air-cooled systems lose the temperature headroom needed for full output and firmware derates power to protect components. Liquid-cooled systems maintain higher output because they move heat to larger, shaded heat exchangers.
Q3. Can firmware really improve extreme-climate performance?
Yes. Climate-adaptive firmware handles preconditioning coordination, ramps power based on battery telemetry, applies proactive derating curves, pre-heats connectors, and distinguishes cold-limited sessions from hardware faults. These behaviors can recover 30–50 percentage points of delivered power in winter and prevent random thermal trips in summer.
Q4. What IP rating should extreme-climate chargers have?
IP55 is the practical baseline for outdoor extreme-climate deployments: protection against dust ingress and water jets, with filtered ventilation. For locations with heavy blowing sand or blowing snow, operators should additionally specify filtered positive-pressure enclosures and seasonal maintenance for filters and heat exchangers.
Q5. Do liquid-cooled cables matter in extreme climates?
Yes, on both ends of the spectrum. Liquid-cooled cables carry more current in a lighter, more flexible package — valuable in desert heat where cable cooling is otherwise the limiting factor — and in cold climates low-temperature coolant formulations keep cables flexible and functional down to −40°C.
Q6. How should maintenance cadence differ in extreme climates?
Desert sites need 2–4 times denser filter and heat-exchanger cleaning during dust-storm seasons, plus UV and seal inspections. Cold-climate sites need pre-winter checks of heaters, condensate drains, and connector de-icers, and snow-season inspection of grilles and foundations. Both benefit from remote monitoring that alerts on derating, condensation, and filter pressure drop.
Q7. Can the same charger model serve both cold and desert sites?
A well-specified platform can, if it ships with the right options: liquid cooling, wide-temperature coolant, IP55+ enclosures, connector heaters, and climate-adaptive firmware. The most reliable approach is a common hardware platform configured per climate at the factory and commissioned with a site-specific thermal baseline.
