Efficient 480kw Ccs1 Dc Fast Charging Station Dual Guns With Rfid Card Control For Public Hub Fast Delivery Factory

Short Description:

MIDA 480kW DC Fast Charging Station provides high-speed CCS1 charging with ultra-wide 1000V DC output. Features rugged IP54 waterproof design, intelligent OCPP 1.6J control, and user-friendly RFID/App management. Ideal for high-traffic public hubs and commercial fleets. CE & TUV certified for

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Efficient 480kW DC Fast Charging

Designed for the next generation of e-mobility, this CCS1 charging station delivers up to 480kW of clean power. Its modular design ensures high uptime and low maintenance costs for operators, making it the perfect choice for highway and commercial deployments.

Multi-Standard Compatibility

Full support for CCS1 standards, ensuring seamless connection with all modern electric vehicles. Equipped with dual-gun intelligent power sharing, it can charge two vehicles simultaneously at optimized speeds.

Industrial Grade Protection

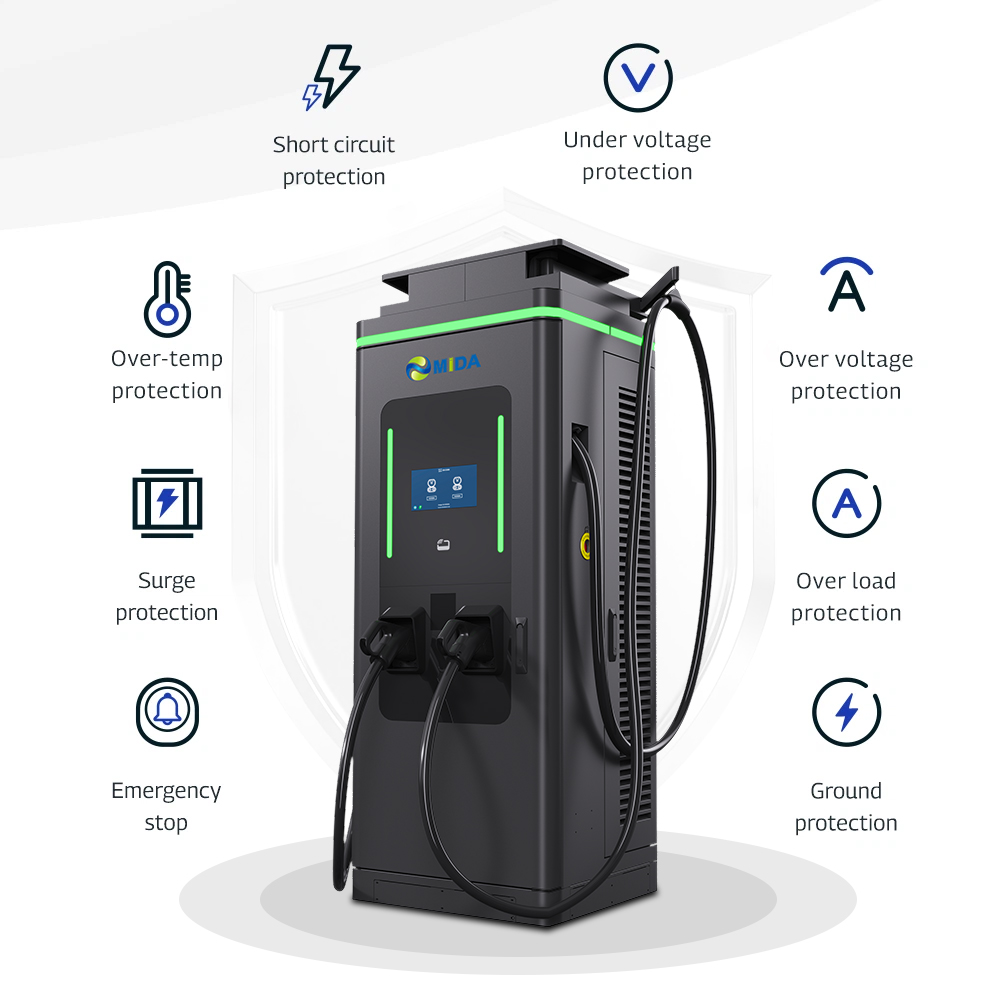

Built to withstand harsh environments with IP54 and IK10 ratings. Features an 8-layer safety protection system including over-temperature, surge, and leakage current detection for 24/7 safe operation.

Technical Specifications

Rated Power	480kW
Input Voltage	400Vac±10% (3P+N+PE)
Output Voltage	200V – 1000V DC
Max Output Current	350A
Efficiency	>95.5%% at nominal output power
Charging Interface	CCS1 (CCS1 / CCS2 / CHAdeMO / GB/T / NACS compatible)
Display & UI	10.1″ LCD Touch Screen + RFID + App
Communication	4G / WiFi / Ethernet (OCPP 1.6J/2.0.1 Ready)
Protocol	OCPP 1.6J / 2.0.1
Protection Level	IP54 & IK10 (Outdoor Rated)
Dimensions (LWH)	8008002000mm
