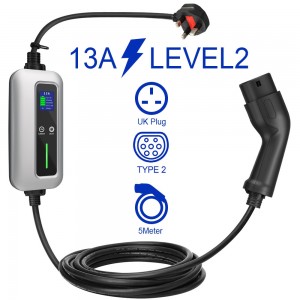

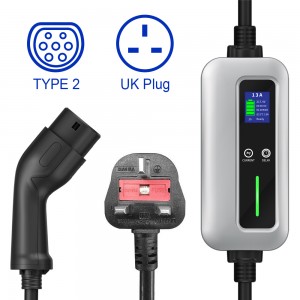

IP67 Level 2 EV Charger 8A 10A 13A Type 2 UK Plug 3Pin Portable Electric Car Charger Cable

Short Description:

Rated current: 6A / 8A / 10A/ 13A
Rate Power: 3.6KW Max
Operating voltage: 110V~250V AC
Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max

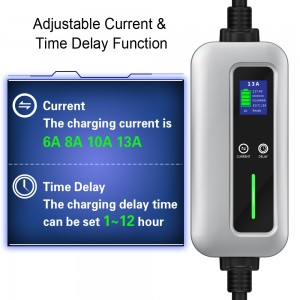

Portable EV Charger Type 2 Time Delay

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail


    Product Tags

    Rated Current 6A / 8A / 10A/ 13A ( Optional )
    Rated Power Max 3.6KW
    Operation Voltage AC 110V~250 V
    Rate Frequency  50Hz/60Hz
    Leakage Protection Type B RCD  ( Optional )
    Withstand Voltage 2000V
    Contact Resistance 0.5mΩ Max
    Terminal Temperature Rise <50K
    Shell Material PC Flame Retardant Grade UL94 V-0
    Mechanical Life No-Load Plug In  / Pull Out >10000 Times
    Operating Temperature -25°C ~ +55°C
    Storage Temperature -40°C ~ +80°C
    Protection Degree IP67
    EV Control Box Size 200mm (L) X 93mm (W) X 51.5mm (H)
    Weight 2.1KG

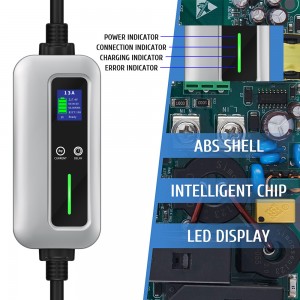

    OLED Display Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
    Standard IEC 62752  ,  IEC 61851
    Certification TUV,CE Approved
    Protection 1.Over and under frequency protection
    2. Over Current Protection
    3.Leakage Current Protection (restart recover)
    4. Over Temperature Protection
    5.Overload protection (self-checking recover)
    6. Ground Protection and Short circuit protection
    7.Over voltage and under-voltage protection
    8. Lighting Protection
