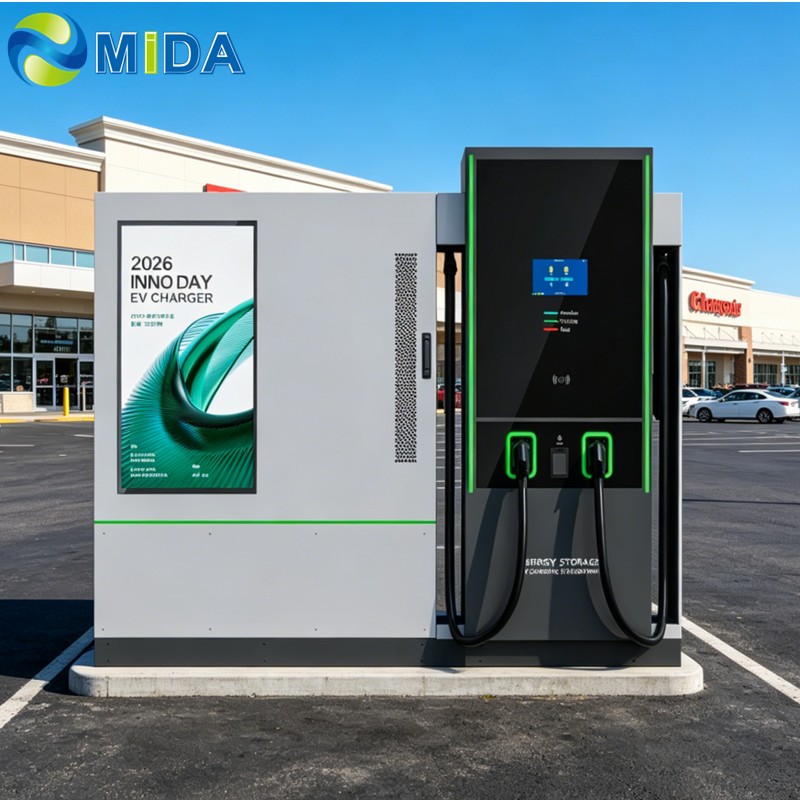

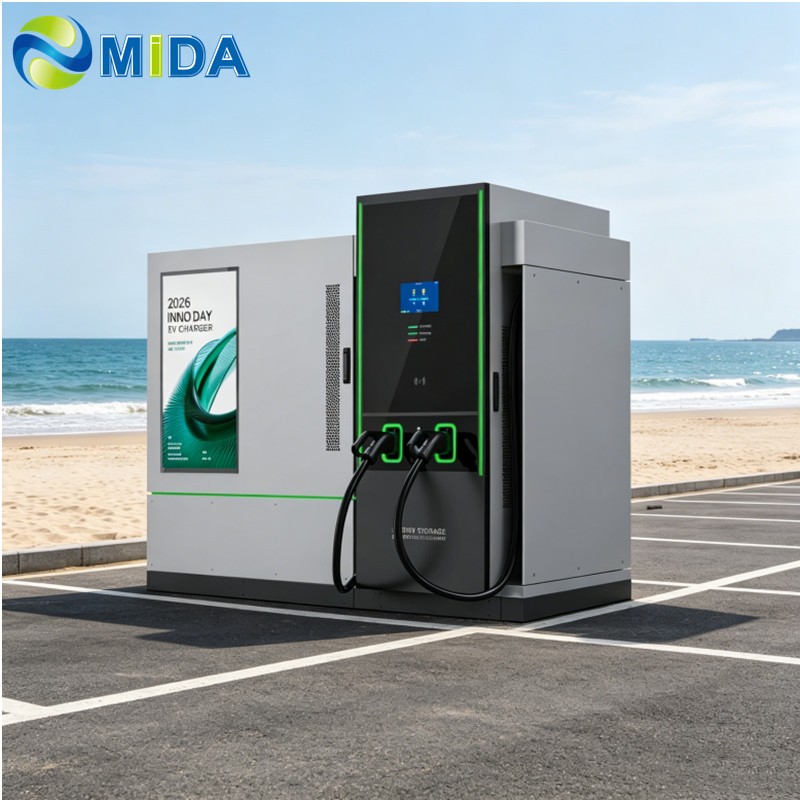

The MIDA MD-BESS-200-120 is a robust Energy Storage Charging System designed for peak shaving, grid support, and rapid EV charging. With a 200kWh (197.12kWh net) battery capacity and 120kW output power, it provides a stable and high-speed charging experience even in areas with limited grid infrastructure.

Key Features

• Grid Stabilization: “Peak shaving and valley filling” to reduce grid pressure and operational costs.
• Ultra-Fast Output: Dual guns delivering up to 120kW DC power for quick vehicle turnaround.
• Wide Compatibility: Output voltage from 200V to 1000V DC, compatible with 800V high-voltage platforms.
• Enhanced Safety: 8-layer protection system including OVP, OCP, OTP, and residual current detection.
• All-Weather Design: IP54 rated for outdoor installation in environments from -35°C to 60°C.

Specifications

Who Needs This?

EV Charging Point Operators (CPOs), Fleet Managers, Remote Resorts, and Industrial Facilities with power peak limitations.

MIDA provides end-to-end BESS solutions with local certifications and professional technical support. Upgrade your charging station with MIDA’s storage technology today!
