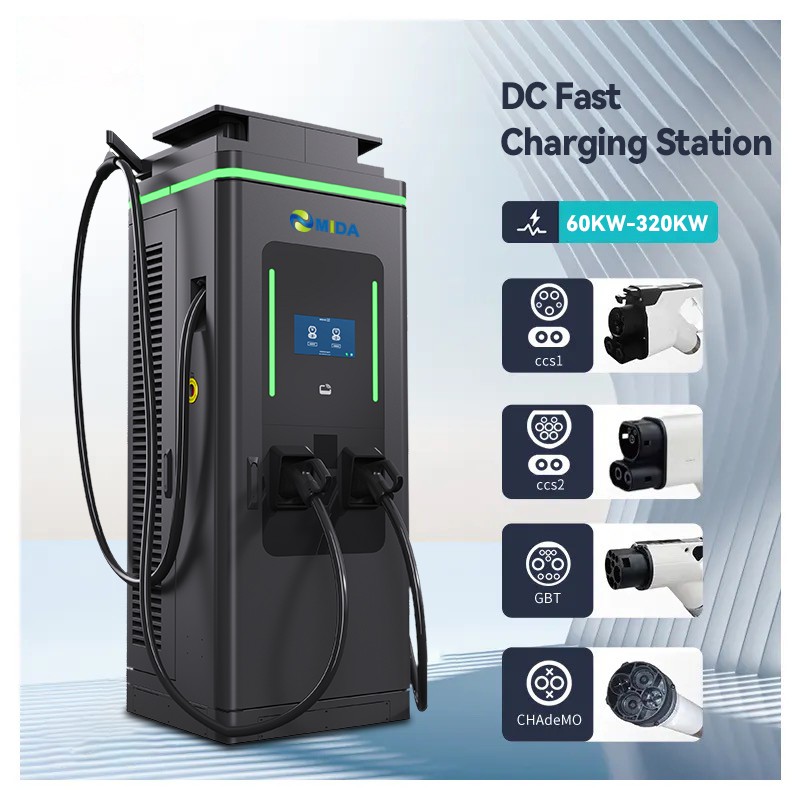

The MIDA 240kW 320kW DC Fast Charger (Models MD-EU-240KW / MD-EU-320KW) is a high-power charging solution built for heavy-duty use at highway service stations, transport hubs and large commercial fleets. The dual-gun configuration with intelligent power distribution maximizes charger utilization and delivers fast top-ups for modern 800V vehicles.

Key Features

• Dual-gun output with intelligent power distribution, charging two EVs at the same time
• Ultra-wide output voltage range 200-1000Vdc, max output current 300A
• Multi-standard compatibility: CCS1 / CCS2 / CHAdeMO / GB/T / NACS
• OCPP 1.6 / 2.0 communication, 4G / WiFi / Ethernet remote management and OTA upgrade
• Flexible start-up and payment: RFID card, POS credit card, QR code and mobile APP
• 10.1″ LCD touch screen with real-time charging status and alarm messages
• IP54 protection, emergency stop button, forced fan air-cooling

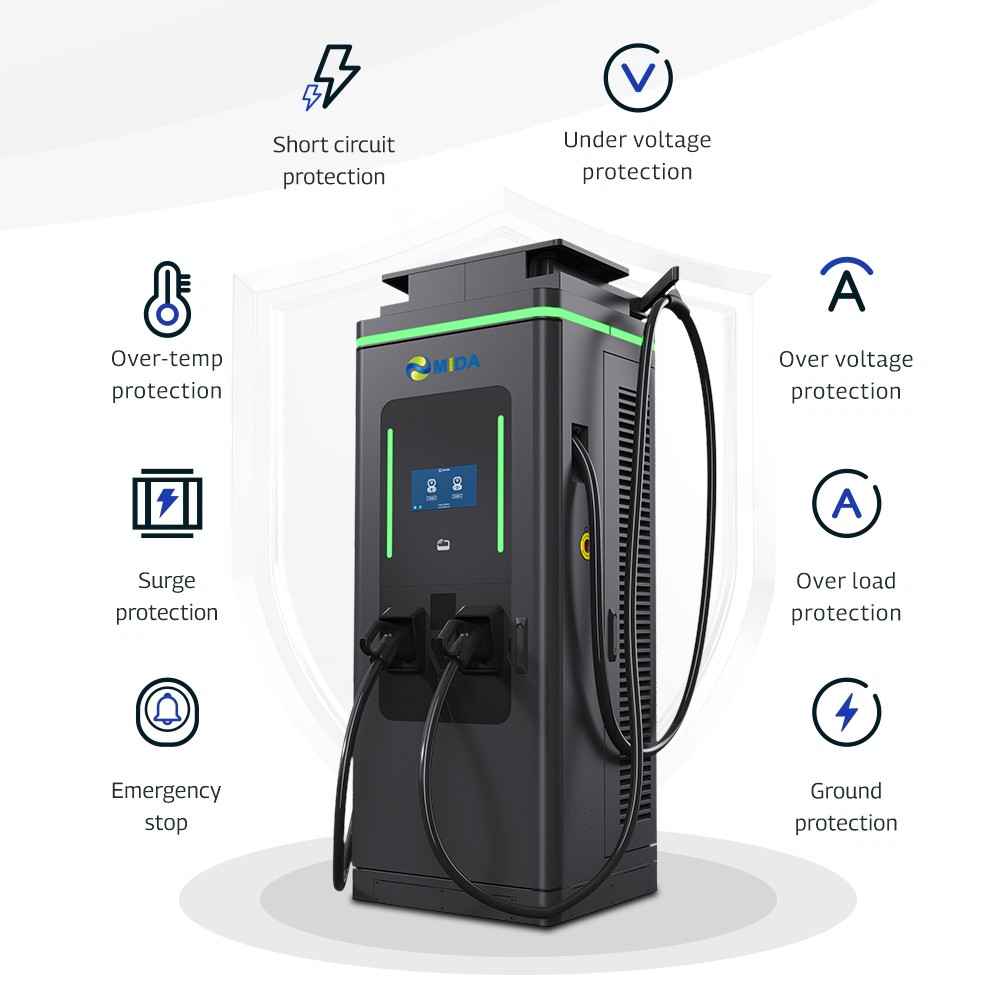

• 8-layer safety protection: OVP, OCP, OPP, OTP, UVP, residual current detection, surge protection, cabinet-open detection
• High efficiency >95% with power factor >0.99 (APFC)

Specifications

Applications

Highway service stations, transport hubs, large fleet depots, shopping centers and public ultra-fast charging hubs.

MIDA has 10+ years of EV charging expertise with factories in Shanghai, Shenzhen and Wuxi. We support OEM/ODM customization, global certifications and fast lead time (2-4 weeks). Contact us for a tailored quotation!
