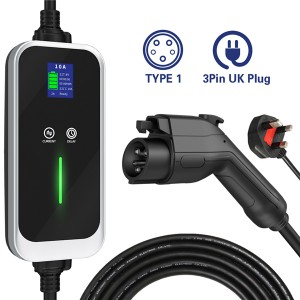

Portable EV Charger Type 1 J1772 Plug 8A 10A 13A UK Plug 3 Pin Rapid Charger box

Short Description:

Short Description:
Rated current: 6A / 8A / 10A
Rate Power: 3.6KW Max
Operating voltage: 110V~250V AC
Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max

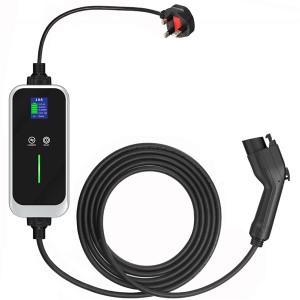

Portable EV Charger Type 1 J1772 Plug


Product Detail

FAQ

Product Tags

Electrical Performance
Item Mode 2 EV Charger Cable  (  Adjustable  )
Product Model MIDA-EVSE-PE10B
MIDA-EVSE-PE10B
MIDA-EVSE-PA16B
MIDA-EVSE-PE16B
MIDA-EVSE-PA32B
MIDA-EVSE-PE32B
MIDA-EVSE-PA40A
Rated Current 6A /  8A / 10A
( Optional )
6A /  8A / 10A / 13A / 16A
( Optional )
10A / 16A / 20A/ 24A / 32A
( Optional )
16A / 20A / 24A/ 32A / 40A
( Optional )
Rated Power Max 7.2KW
Operation Voltage AC 110V~250 V
Rate Frequency  50Hz/60Hz
Leakage Protection Type B RCD
Withstand Voltage 2000V
Contact Resistance 0.5mΩ Max
Terminal Temperature Rise <50K
Shell Material ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life No-Load Plug In  / Pull Out >10000 Times
Operating Temperature -25°C ~ +55°C
Storage Temperature -40°C ~ +80°C
Protection Degree IP67
EV Control Box Size 200mm (L) X 93mm (W) X 51.5mm (H)
Weight 2.1KG
OLED Display Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time

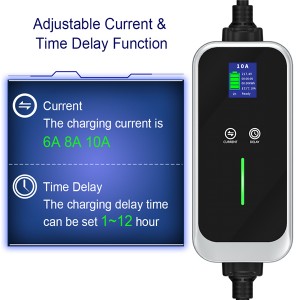

New Function Delayed charging
Standard IEC 62752  ,  IEC 61851
Certification TUV,CE Approved
Protection 1.Over and under frequency protection                     2. Over Current Protection
3.Leakage Current Protection (restart recover)        4. Over Temperature Protection
5.Overload protection (self-checking recover)            6. Ground Protection and Short circuit protection
7.Over voltage and under-voltage protection             8. Lighting Protection
