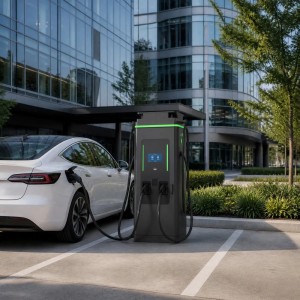

Professional 300kw Gbt Dc Fast Charging Station Modular Design With Modular Design For Shopping Mall Support Oem Odm

Short Description:

MIDA 300kW DC Fast Charging Station: Industrial-grade GBT charger with 200V-1000V output. Features intelligent dual-gun power distribution, smart OCPP 1.6J/2.0.1 control, and rugged IP54/IK10 design. Perfect for public stations and commercial fleets. CE & TUV certified for maximum reliability.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Robust 300kW DC Fast Power

This high-performance 300kW station is designed for commercial heavy-duty use. With peak efficiency >95.5%, it maximizes energy conversion and reduces operational overhead.

Multi-Protocol Compatibility

Supports global standards including GBT, CCS1, CHAdeMO, and NACS. The intelligent dual-gun sharing allows two vehicles to charge at optimal rates simultaneously.

Uncompromised Safety

✓ OVP/OCP/OTP/UVP Protection
✓ IP54 & IK10 Outdoor Rated
✓ Residual Current Detection
✓ Emergency Stop & Anti-theft

Comprehensive Technical Specifications

Rated Power	300kW
Input Voltage	400Vac±10% (3P+N+PE)
Output Voltage	200V – 1000V DC
Max Output Current	300A
Efficiency	>95.5%% at nominal output power
Charging Interface	GBT (CCS1 / CCS2 / CHAdeMO / GB/T / NACS compatible)
Display & UI	10.1″ LCD Touch Screen + RFID + App
Communication	4G / WiFi / Ethernet (OCPP 1.6J/2.0.1 Ready)
Protocol	OCPP 1.6J / 2.0.1
Protection Level	IP54 & IK10 (Outdoor Rated)
Dimensions (LWH)	8008002000mm
