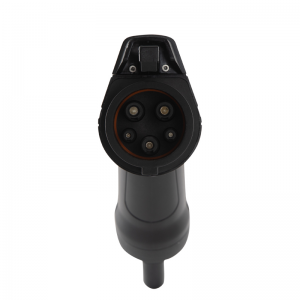

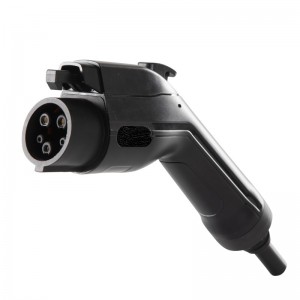

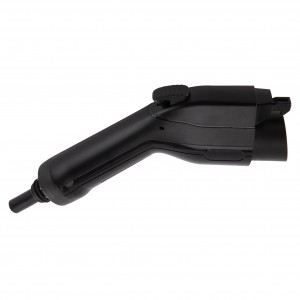

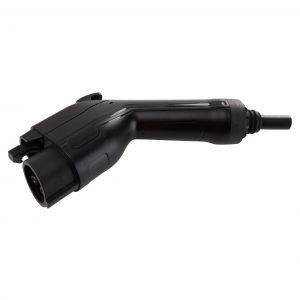

sae j1772 16A/32A AC type 1 charging plug female electric charger

Short Description:

1. Rated Current:16A / 32A
2. OperationVoltage:AC 250V
3. Insulation Resistance:>1000MΩ(DC500V)
4 Withstand Voltage:3200V
5.Contact Resistance:0.5mΩ Max

Product Detail


Product Tags

Rated Current 16Amp  /  32Amp  Single Phase
Operation Voltage AC 250V
Insulation Resistance 1000MΩDC 500V
Withstand Voltage 2000V
Pin Material Copper Alloy, Silver Plating
Shell Material Thermoplastic,Flame Retardant Grade UL94 V-0
Mechanical Life No-Load Plug In  / Pull Out 10000 Times
Contact Resistance 0.5mΩ Max
Terminal Rise 50K
Operating Temperature -30°C~+50°C
Impact Insertion Force >300N
Waterproof Degree IP55
Cable Protection Reliability of materials,antiflaming,pressure-resistant, abrasion resistance
impact resistance and high oil
Certification TUV,UL Approved
Model Rated Current Phase Cable Specification Cable Color  Cable Length
  MIDA-EVA-16A 16Amp 1 Phase 3 X 2.5mm² + 2 X 0.5mm² Black
(5Meter ,10Meter)
The length of the cable
can be customized
  MIDA-EVA-32A 32Amp 3 X 6mm²+ 2 X 0.5mm²
