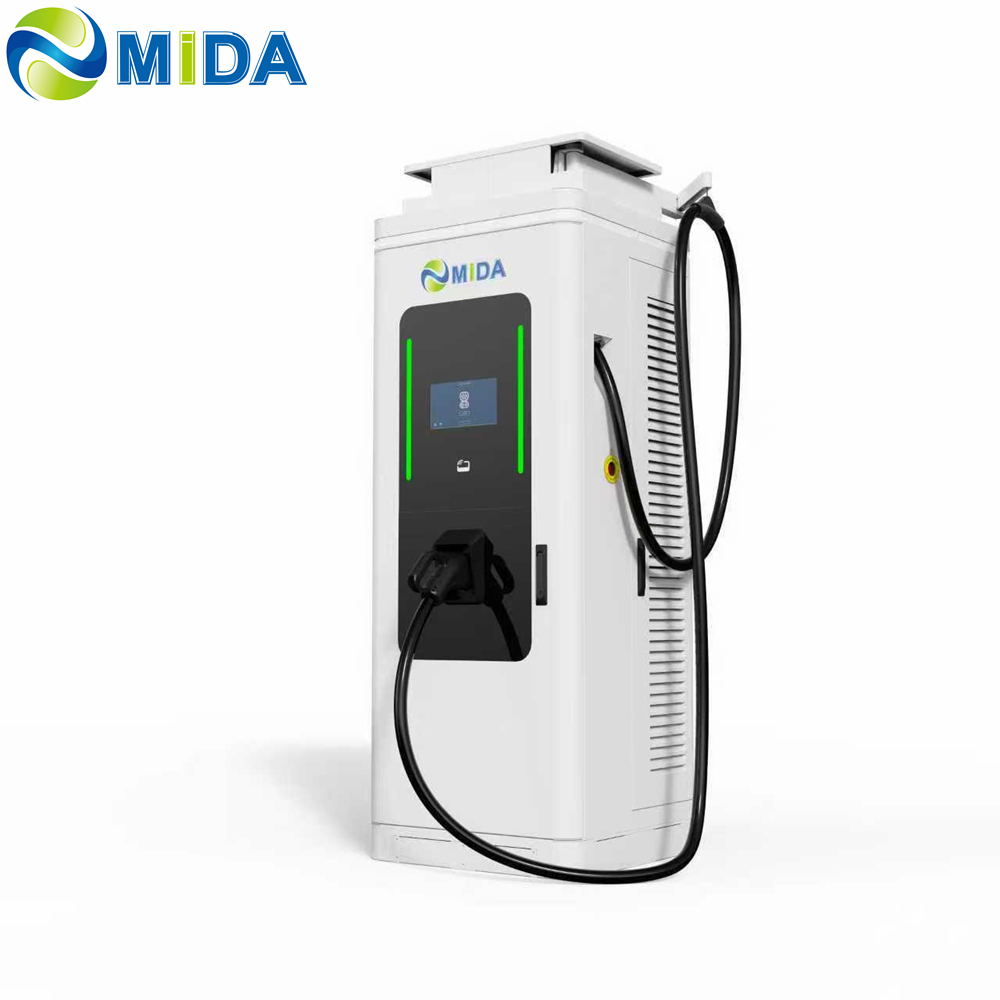

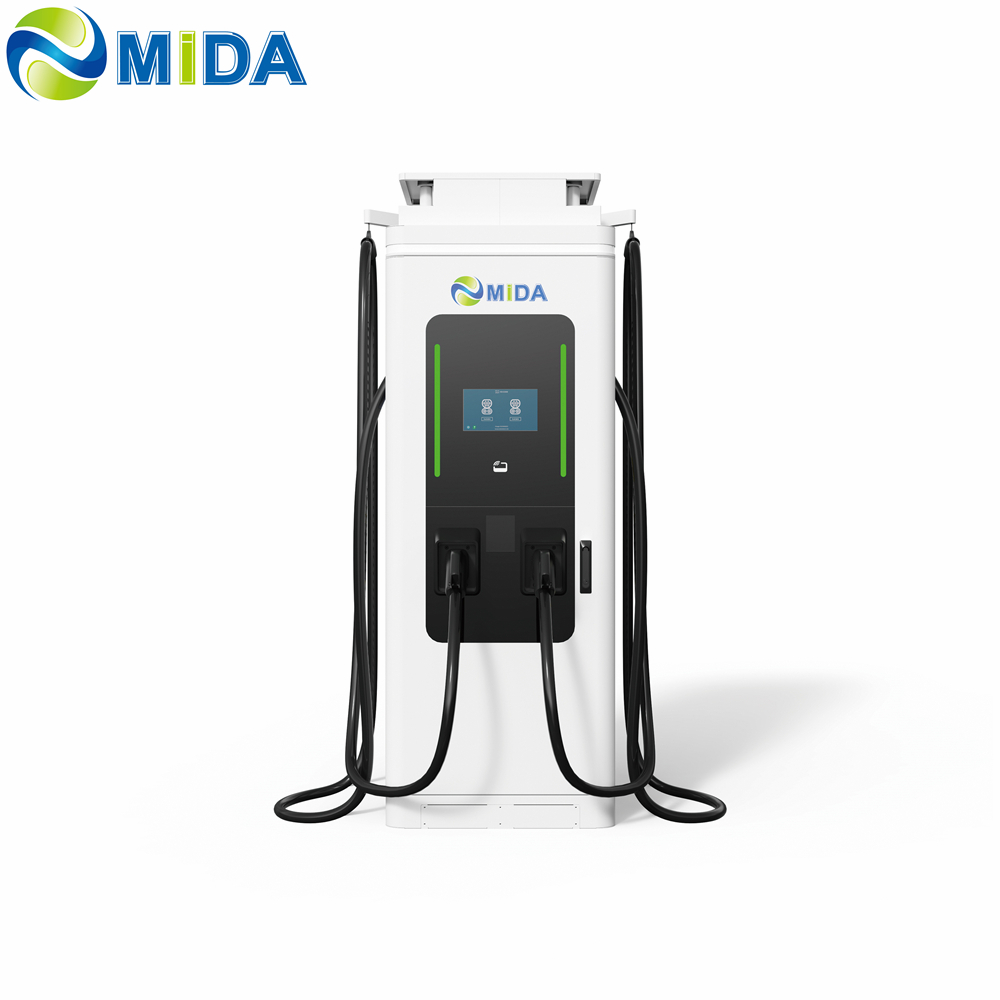

Ultra Fast 360kw Gbt Commercial Evse Station Dual Guns With High Efficiency For Bus Station High Performance Module

Short Description:

MIDA 360kW DC Fast Charging Station: Industrial-grade GBT charger with ultra-wide 200V-1000V output. Certified by CE & TUV, featuring IP54 waterproofing, 8-layer safety protection, and intelligent OCPP 1.6J/2.0.1 control via 10.1" touch screen. Perfect for high-traffic fleets and highway hubs. Reliable 24/7. Inquiry for OEM!

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Robust 360kW DC Power

This high-performance 360kW station is designed for commercial heavy-duty use. With a peak efficiency of >95.5%, it maximizes energy conversion and reduces operational overhead for EV charging network operators.

Smart Multi-Protocol Support

Supports global standards including GBT, CCS2, CCS1, and CHAdeMO. The intelligent dual-gun power distribution system allows two vehicles to charge at their optimal rates simultaneously, ensuring zero downtime.

Uncompromised Safety

✓ OVP/OCP/OTP/UVP Protection
✓ IP54 & IK10 Outdoor Rated
✓ Residual Current Detection
✓ Emergency Stop (Press to cut power)
✓ Cabinet-open Detection for Anti-theft

Comprehensive Technical Specifications

Specifications	Technical Parameters
Rated Power	360kW
Input Voltage	400Vac±10%, 3P+N+PE
Max Input Current	547A@400V
Output Voltage Range	200V – 1000V DC (Ultra-wide)
Efficiency	≥95% at nominal power
Power Factor	>0.99 (APFC)
Display & UI	10.1″ LCD Touch Screen + RFID + App + POS
Communication	4G / WiFi / Ethernet (OCPP 1.6J/2.0.1 Ready)
Dimensions (LWH)	8008002000mm
Weight	450kg
Noise / Cooling	<75dB / Forced fan air-cooling
