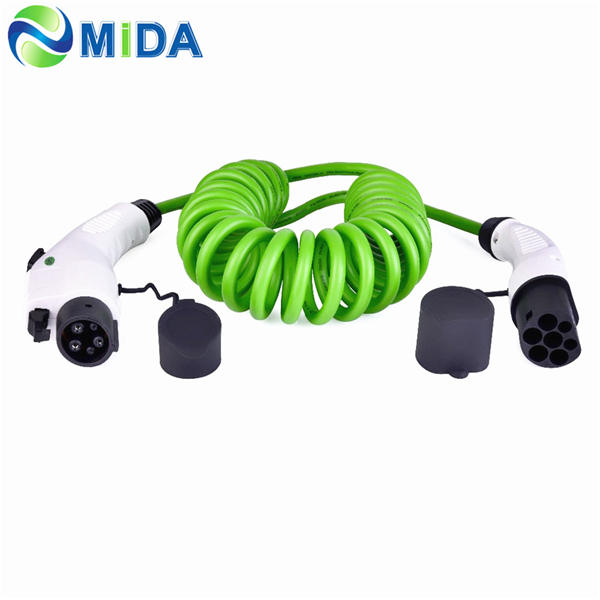

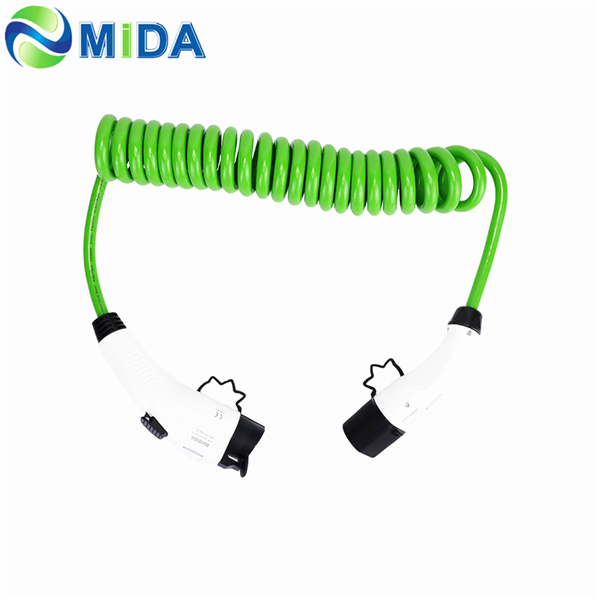

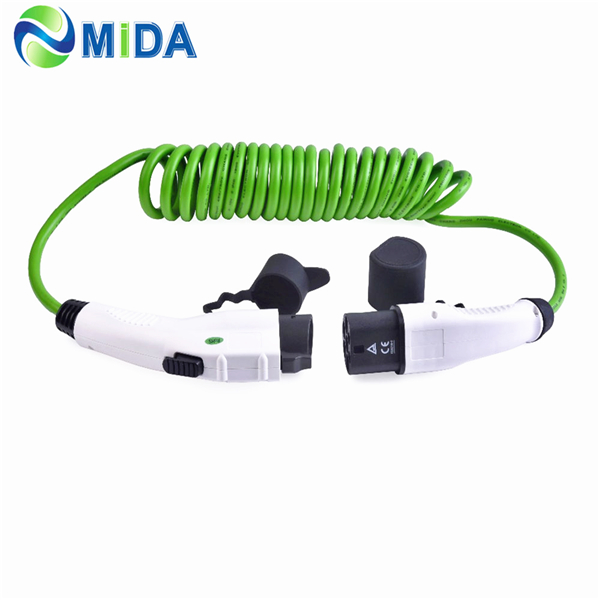

16A 32A Type 1 to Type 2 EV Cable Electric Vehicle EV Charging Cable Green

Short Description:

Electrical Performance
Model: 2010-3030-16-XC ,2010-3030-32A-XC
Rated Current: 16A ,32Amp
Operating Voltage: 110V~250AC
Insulation Resisitance:>1000MΩ
Therminal Temperature rise:<50K
Withstand Voltage:2000V


Product Detail

FAQ

Product Tags

Features 1. Charging plug meet SAE J1772 2010 to 62196-2 IEC 2010 Standard
2. Product assembly meet IEC 61851-1 2010 charging mode 3 connection method B2
3. Excellent protection performance,protection grade IP55(working condition)
Mechanical properties 1. Mechanical life : no-load plug in/pull out10000 times
2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance 1. Rated current 16A/32A
2. Operation voltage: 250V
3. Insulation resistance:>1000MΩDC500V
4. Terminal temperature rise:<50K
5. Withstand Voltage2000V
6. Contact resistance: 0.5mΩ Max
Applied Materials 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Contact bushCopper alloy,silver plating
Environmental performance 1. Operating temperature: -30°C~+50°C
Model selection and the standard wiring
Model Rated current Cable specigication Cable Color
2010-3030-16-XC 16Amp 3 X 2.5mm²+2 X 0.5mm² Orange
Black
