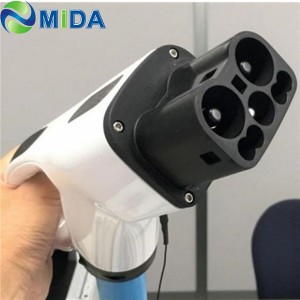

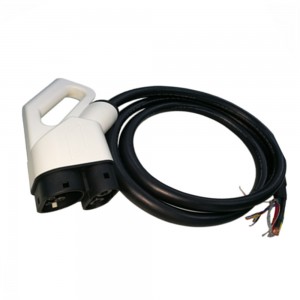

500A CCS Combo 2 Plug Liquid-cooled Charging Gun CCS 2 Connector

Short Description:

Model: MIDA-CCS2-EV500P

1. Rated Current:500A
2. OperationVoltage:DC 1000V
3. Insulation Resistance:>1000MΩ(DC500V)
4. DC Max Charging Power: 500 KW
5. Withstand Voltage:3200V

CCS Combo 2 EV Charger Connector
500A CCS Combo 2 Plug for Fast Charger Station
500A Fast Charger CCS 2 Connector
IEC 62196-3 Combo 2 DC Charging Plug
500A CCS Combo 2 Connector for Quick Charging Point

Product Detail


Product Tags

Features 1. Meet 62196-3 IEC 2011 SHEET 3-Im standard
2. Concise appearance, support back installation
3. Back Protection class IP55
4.Max charging power:500kW
5. Cooltant: Silicon oil
Mechanical Properties 1. Mechanical life : no-load plug in/pull out>10000 times
2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance 1. DC input: 80A ,125A ,150A ,200A,500A 1000V DC MAX
2. AC input: 16A 32A 63A 240/415V AC MAX
3. Insulation resistance:>2000MΩ(DC1000V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:3200V
6. Contact resistance: 0.5mΩ Max
Applied Materials 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin:Copper alloy,silver +thermoplastic on the top
Environmental Performance 1. Operating temperature: -30°C~+50°C
Model selection and the standard wiring
Model Rated Current Cable Specigication Cable Color
