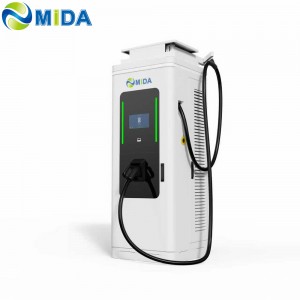

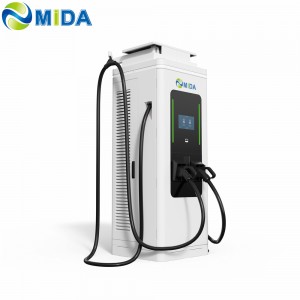

60KW 120KW 180KW 240KW 400KW DC EV Charging Station Fast Charger CCS1 CCS2 GBT CHAdeMO Standard

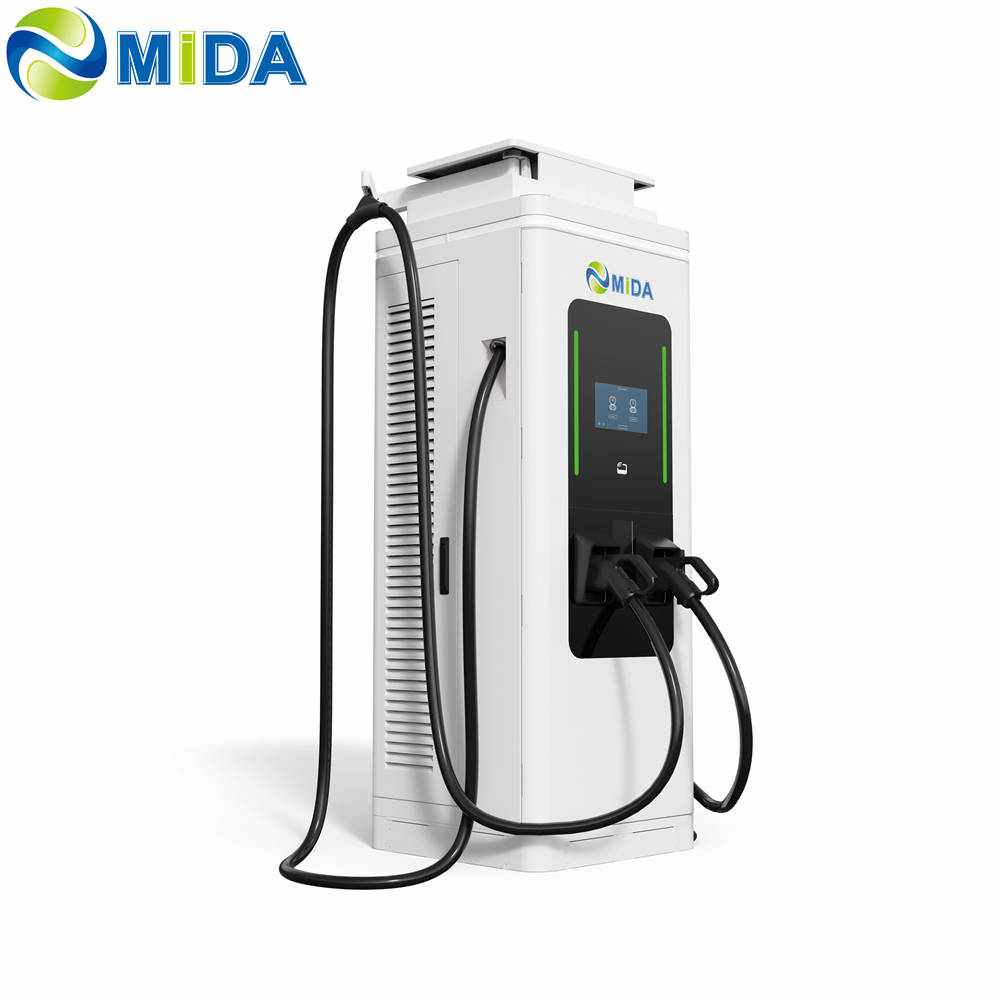

120KW DC Fast Charger With GBT/CCS Gun DC Fast Charging Station

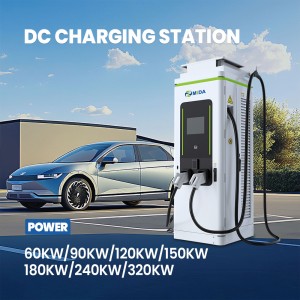

DC fast chargers (Level 3) with power output from 60kW to 480kW. True simultaneously charging with the capability to charge two vehicles atthe same time

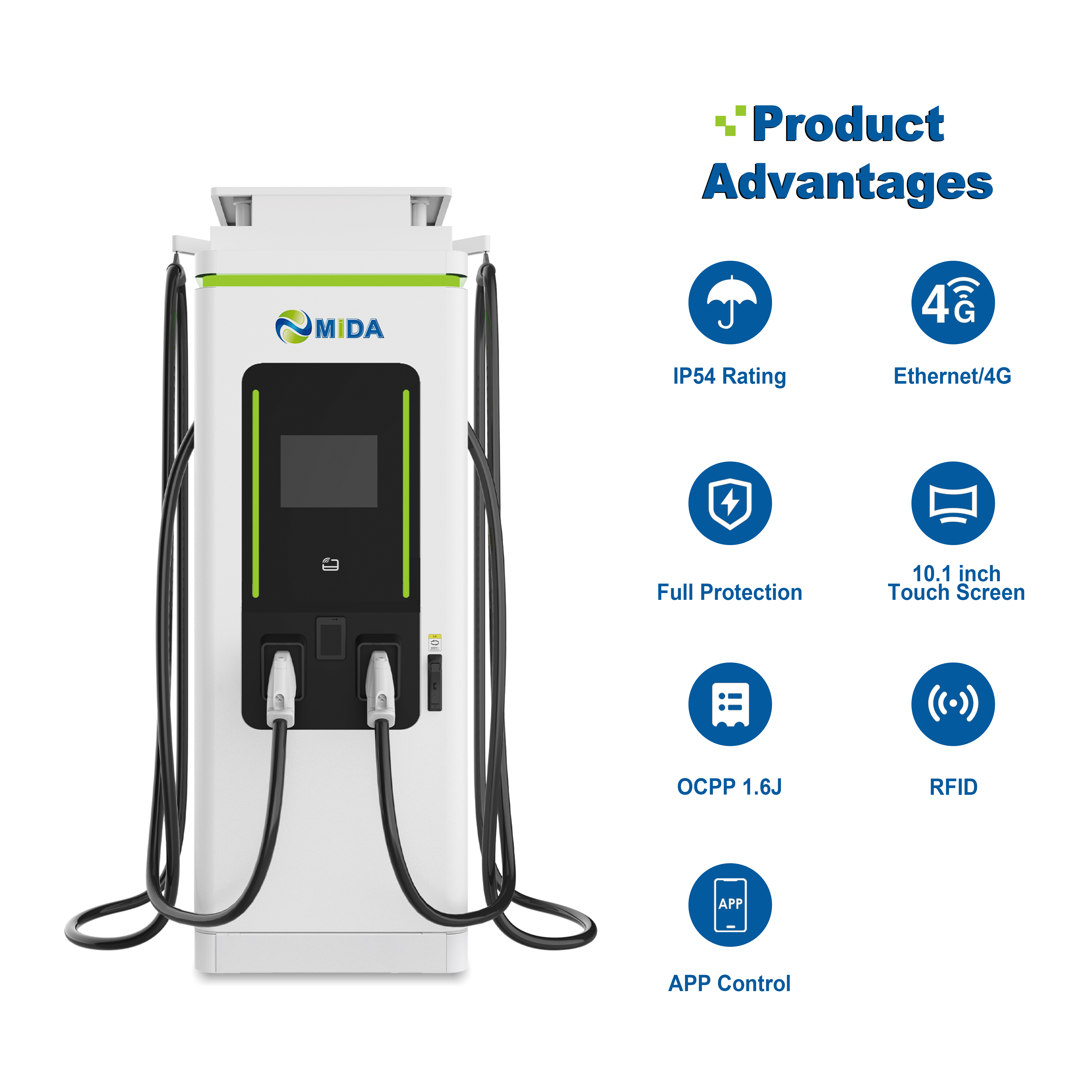

Future-proof design with 1000 V max output Open Charge Point Protocol (OCPP) 1.6 and lS0 15118 compliant Liquid-cooled ultra-fast 480kW EV charging stations available Driver friendly with a 10″ LCD touch screen display and simple to user interface.
Start modes include plug-n-play, RFlD, OCPP and optional PoS Ethernet, 4G and Wi-Fi connections available IP54 rated enclosure ideal for a wide range of locations and conditions. CHAdeMO, NAcS, and ccs (type 1 or 2) connectors and charging cables. Designed for easy installation and maintenance Available with different power and voltage configurations for global markets.
|
Machine |
Dimension(W*D*H) |
700mm*700mm*1800mm |
Class of protection |
IP54（Outdoors） |
|
Equipment weight |
About:390kg |
Cooling |
Forced air cooling |
|
|
Module weight |
About:17kg |
Cable length |
5m(Customizable) |
|
|
Installation type |
Floor type |
|||
|
Input |
Ac input voltage |
AC400V±10％ |
Grid frequency |
45Hz to 65Hz |
|
Phase lines |
L1、L2、L3、N、PE |
Power factor |
≥0.98 |
|
|
Current:THD |
<5% |
|||
|
Output |
Output power |
DC240KW |
Efficiency |
≥95% |
|
Output voltage |
DC150V to 1000V |
Measure |
Dc meter |
|
|
Output current |
Single gun:DC0 to 300A |
|||
|
Environment |
Humidness |
5％ to 95％ |
Altitude |
≤2000m |
|
Storage TEMP |
-40℃ to +70℃ |
|||
|
Operating TEMP |
-30℃ to 50℃ （50℃ to 70℃ Derated output） |
|||
|
Screen |
Reveal |
10in Display |
||
|
Scram |
Press to stop |
|||
|
Starting mode |
Plug and charge, swipe card, scan code (optional) |
|||
|
Billing mode |
Automatic charging fixed power fixed amount fixed time (optional) |
|||
