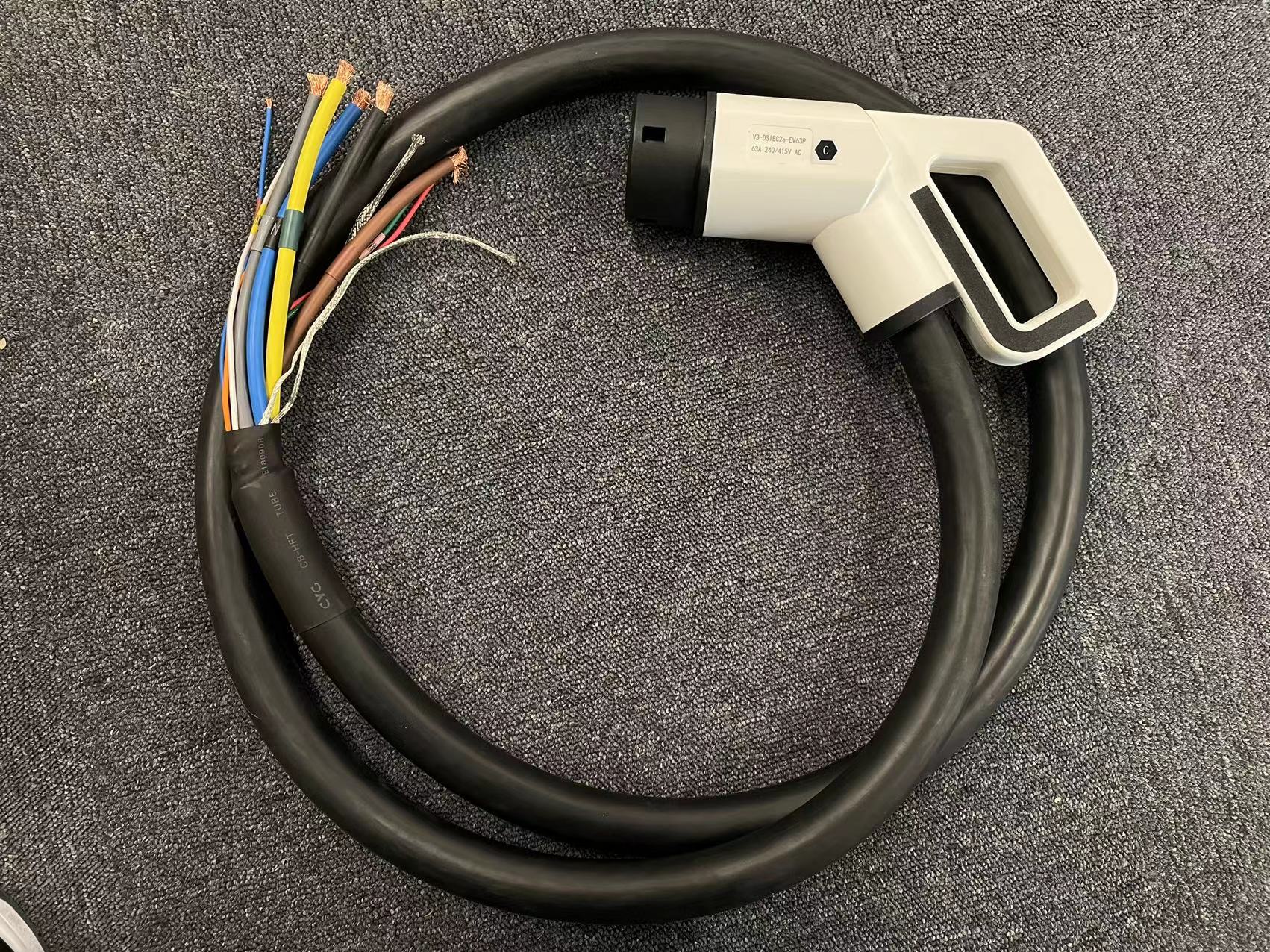

63A Type 2 Female Plug IEC 62196-2 EV Connector V3-DSIEC2e-EV63P

Short Description:

Products Type: MIDA-EVEF-63A-TP
1. Rated Current:63A Three Phase
2. OperationVoltage:AC 250V/480V
3. Insulation Resistance:>1000MΩ(DC500V)
4. Withstand Voltage:3200V
5. Contact Resistance:0.5mΩ Max

Product Detail


Product Tags

Detailed dimensions

1. Meet 62196-2 IEC 2010 SHEET 2-IIe standard
2. Nice appearance,hand-held ergonomic design,easy plug
3. Excellent protection performance,protection grade IP55(working condition)
Mechanical properties
1. Mechanical life : no-load plug in/pull out>5000 times
2. Coupled insertion force:>45N<80N
3. Impat of external force:  can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
1. Rated current:32A/63A
2. Operation voltage: 415V
3. Insulation resistance:>1000MΩ(DC500V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:2000V
6. Contact Resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Conntact bush:Copper alloy,silver plating
Environmental performance
1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model Rated current Cable specigication
32A Three phase
5 X 6mm²+ 2 X 0.5mm²
63A Three phase
5 X 16mm²+ 5 X 0.75mm²
