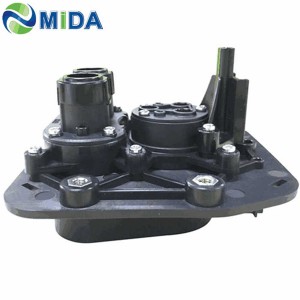

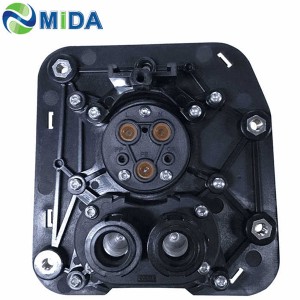

150A CCS COMBO 1 Socket for Electric Car DC Charger Socket DSIEC3J-EV150S

Short Description:

Model: DSIEC3J-EV125S , DSIEC3J-EV150S ,DSIEC3J-EV200S
1. Rated Current:125A/150A/200A
2. OperationVoltage:DC 1000V
3. Insulation Resistance:>1000MΩ(DC500V)
4. DC Max Charging Power: 90KW
5.AC Max Charging Power: 41.5KW
6. Withstand Voltage:3200V


Product Detail

FAQ

Product Tags

Features 1. Meet 62196-3 IEC 2014 SHEET 3-IIIB standard
2. Concise appearance, support back installation
3. Back Protection class IP65
4. DC Max charging power: 90kW
5. AC Max charging power:41.5kW
Mechanical properties 1. Mechanical life : no-load plug in/pull out10000 times
2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance 1. DC input: 150A 1000V DC MAX
2. AC input: 63A 240/415V AC MAX
3. Insulation resistance:>2000MΩDC1000V
4. Terminal temperature rise:<50K
5. Withstand Voltage3200V
6. Contact resistance: 0.5mΩ Max
Applied Materials 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. PinCopper alloy,silver + thermoplastic on the top
Environmental performance 1. Operating temperature: -30°C~+50°C
Model selection and the standard wiring
Model Rated current Cable specigication Cable Color
DSIEC3J-EV150S 10Amp 2 X 50mm²+1 X 6mm² +6 X 0.75mm² Orange or Black
