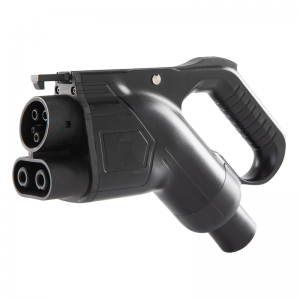

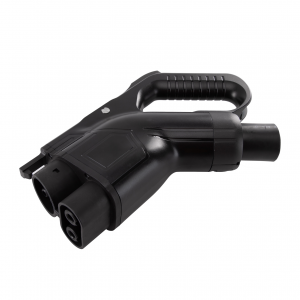

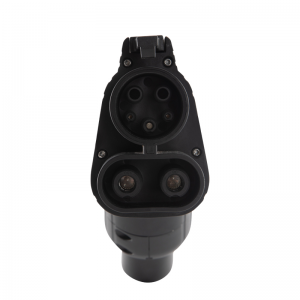

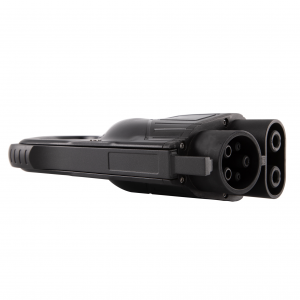

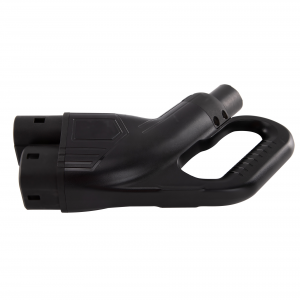

EVSE Combo CCS1 80A 1000V DC Charge Connector Quick Charging Station Cable

Short Description:

Model: MIDA-CSS1-EV80P ,MIDA-CSS1-EV125P
MIDA-CSS1-EV150P , MIDA-CSS1-EV200P
1. Rated Current:80A /125A/150A/200A
2. OperationVoltage:DC 1000V
3. Insulation Resistance:>1000MΩ(DC500V)
4. DC Max Charging Power: 127.5KW
5.AC Max Charging Power: 41.5KW
6. Withstand Voltage:3200V


Product Detail

FAQ

Product Tags

Features 1. Meet 62196-3 IEC 2011 SHEET 3-Im standard
2. Concise appearance, support back installation
3. Back Protection class IP55
4.Max charging power:127.5kW
5. AC Max charging power:41.5kW
Mechanical Properties 1. Mechanical life : no-load plug in/pull out>10000 times
2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance 1. DC input: 80A ,125A ,150A ,200A 1000V DC MAX
2. AC input: 16A 32A 63A 240/415V AC MAX
3. Insulation resistance:>2000MΩ(DC1000V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:3200V
6. Contact resistance: 0.5mΩ Max
Applied Materials 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin:Copper alloy,silver +thermoplastic on the top
Environmental Performance 1. Operating temperature: -30°C~+50°C
Model selection and the standard wiring
Model Rated Current Cable Specigication Cable Color
MIDA-CSS1-EV150P 150A 2 X 50mm²+1 X 25mm² +6 X 0.75mm² Orange or Black
