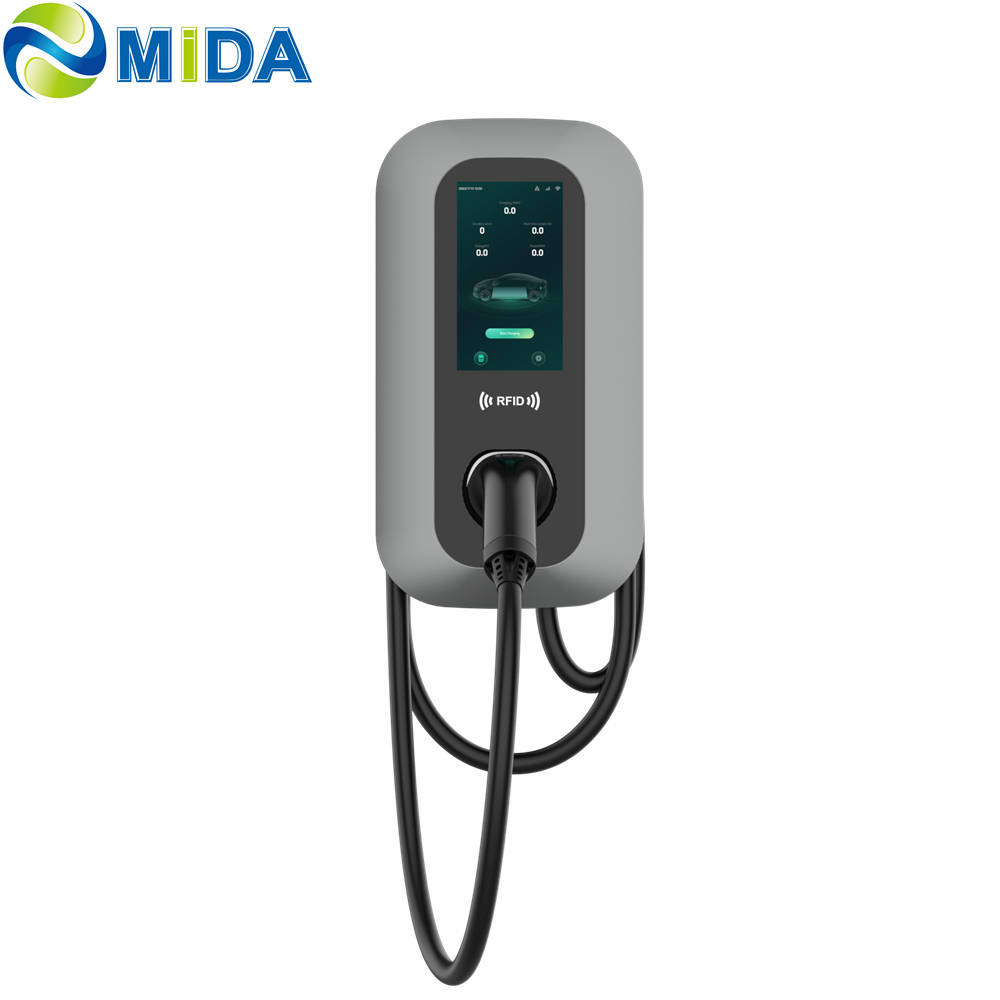

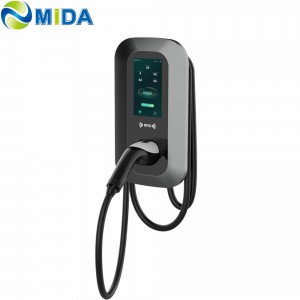

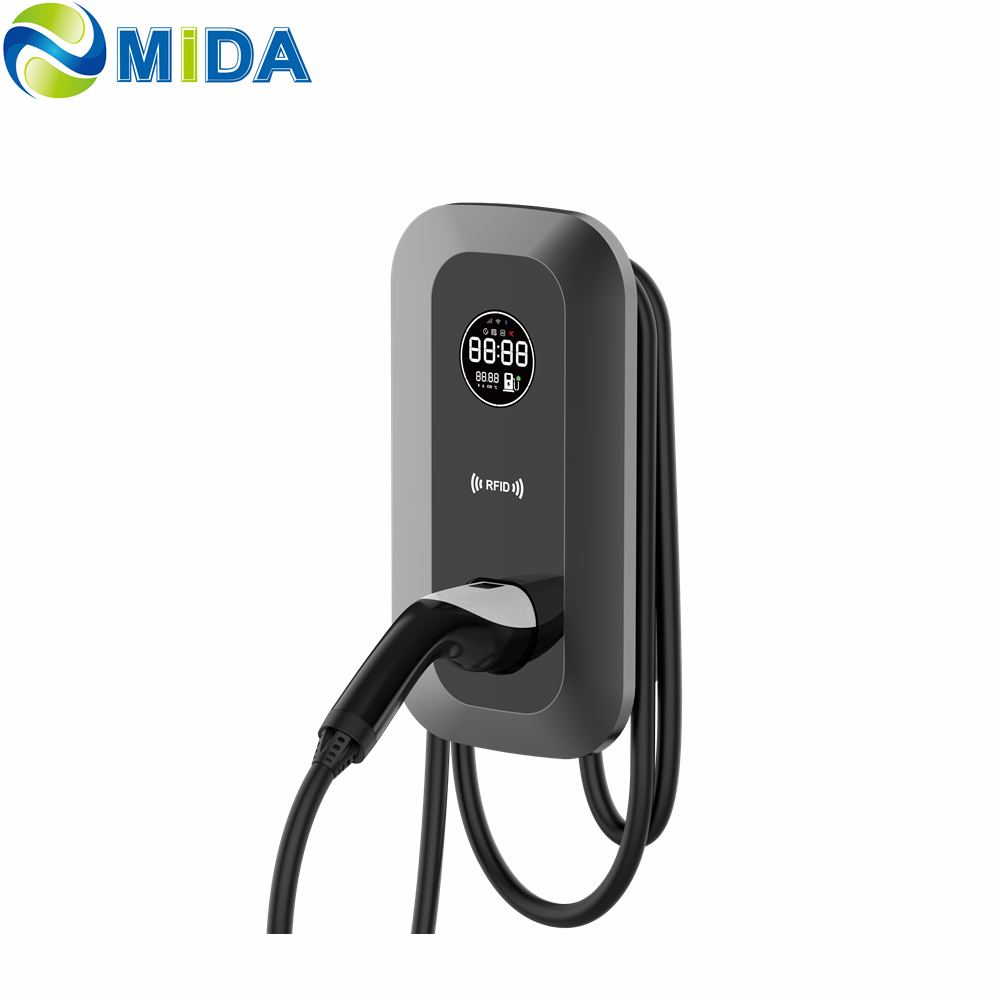

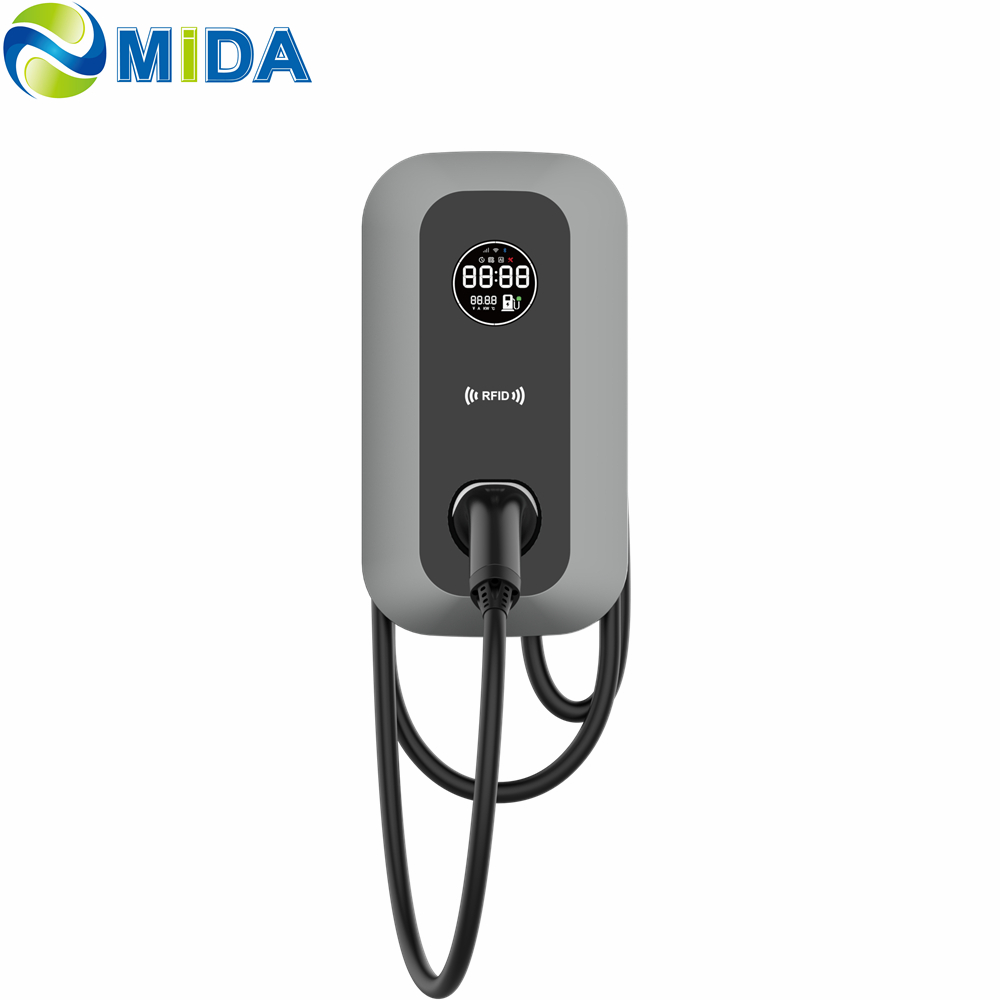

MIDA 7kw 9.6KW 11KW 22KW J1772 type1 Type2 GBT AC Charger Station OCPP1.6 Wallbox Charger with WIFI APP

Short Description:

Optional power: 3.5KW-22KW.

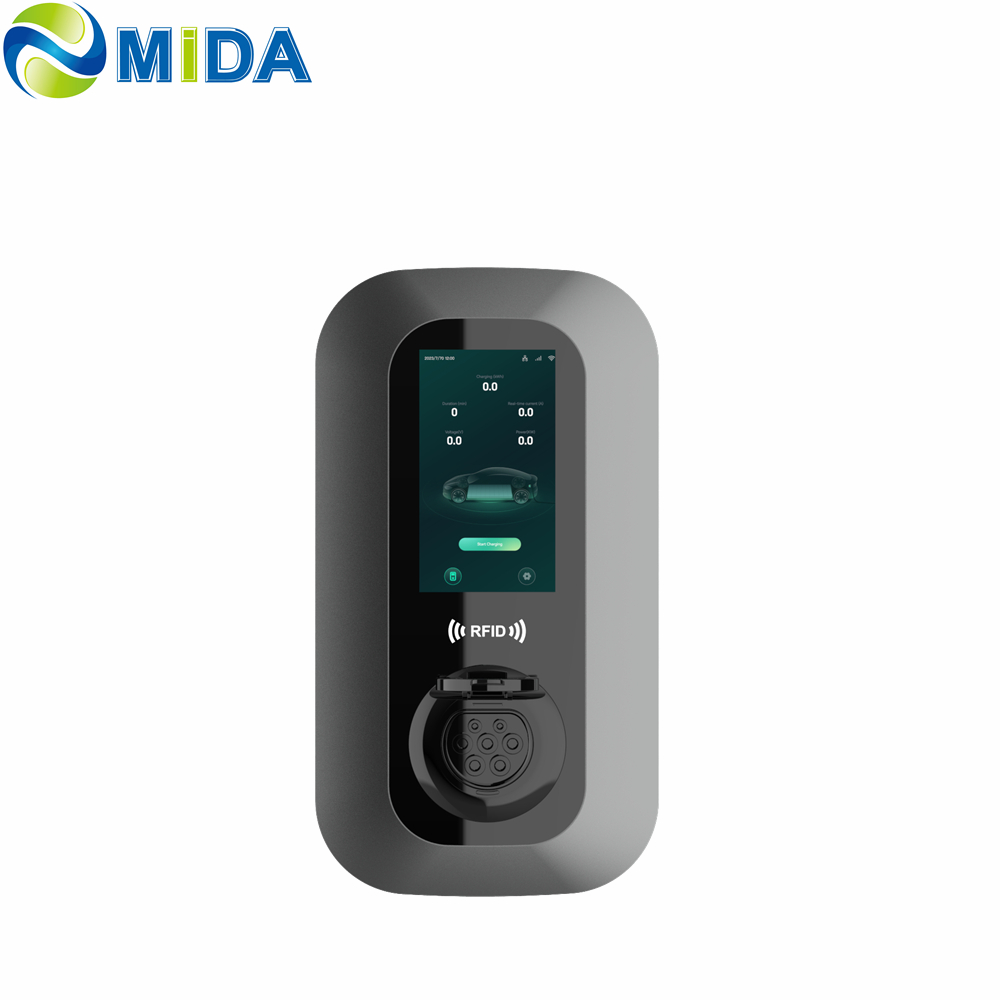

Two models designed: Socket & Charging connector version.
Smart Connectivity & Displays: WiFi, Bluetooth, 4G, and app integration.
OCPP1.6/2.0J Compliant, LED and 7 inch touching displays.
RFID & App Control: Access with RFID authentication or smartphone app for user management and payment.
Efficient & Cost-Saving: Schedule charging during off-peak hours to reduce electricity costs.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

7KW 11KW 22KW AC EV Charger Wallbox EV Charging Stations Electric Car Charger Point

Item		7kw 11KW 22kw AC EV Charger Station
Product Model		MIDA-EVST-11KW
Rated Current		16Amp
Operation Voltage		AC 400V Three Phase
Rated frequency		50/60Hz
Leakage Protection		Type B RCD / RCCB 30mA
Shell Material		Aluminum Alloy
Status Indication		LED Status Indicator
Function		RFID Card
Atmospheric Pressure		80KPA ~ 110KPA
Relative Humidity		5%~95%
Operating Temperature		-30°C~+60°C
Storage Temperature		-40°C~+70°C
Protection Degree		IP55
Dimensions		350mm (L) X 215mm (W) X 110mm (H)
Weight		7.0 KG
Standard		IEC 61851-1:2010 EN 61851-1:2011 IEC 61851-22:2002 EN 61851-22:2002
Certification		TUV,CE Approved
Protection		1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover） 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection
