MIDA EV Adapter 125A DC Fast Charger CHAdeMO to GBT Adapter

Short Description:

Rate Current:125A DC max
Rate Voltage:100-950V DC
IP Grade: IP54
Operating Temperature: -30°C to +50°C
Storage Temperature :-40°C to +85°C
Weight(kg/Pound): 3.6kg/7.92Ib

Product Detail


Product Tags

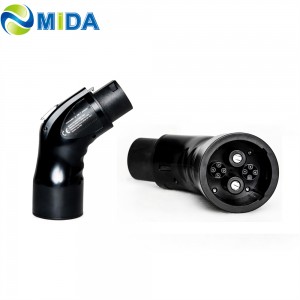

MIDA EV Adaptor CHAdeMO to GBT Adapter for Electric Car Charger

Chademo GBT Adpater

The external interface of CHAdeMO to GB/T Adapter offer USB port for updating firmware and offer 12V port to input power supply. CHAdeMO to GB/T Adapter use for connect the charging cable on a CHAdeMO charging station to a GB/T vehicle that enables for DC charging. It is very convenient to place this adapter into car rear hatch.

Name CHAdeMO to GB/T adapter
Voltage 100~500VDC
Current 200A DC Max
Interface CHAdeMO socket + GB/T plug
Enclosure Rating IP54
Storage Temperature -40℃~+85℃
Operating Temperature -30℃~+50℃
Protocol CHAdeMO 2.0, DIN 70121

The CHAdeMO charging communication controller between the GB/T CAN communication and the CHAdeMO coordinate in the charging process and timing. The adapter with CHAdemo socket and GBT plug. the GB/T charging plug has Self-contained plug lock and work indicator function; CHAdeMO charging inlet is Suitable for CHAdeMO column charging pile and portable charging pile.

✔ Parts working temperature: -40 ° C ~ 85 ° C
✔ Climate environment (temperature / humidity):
✔ Temperature: -40 ℃ ~ 105 ℃,
✔ Humidity: 5%~95%;
✔ IP protection level IP6K7 and IP6K6 requirements must be met
