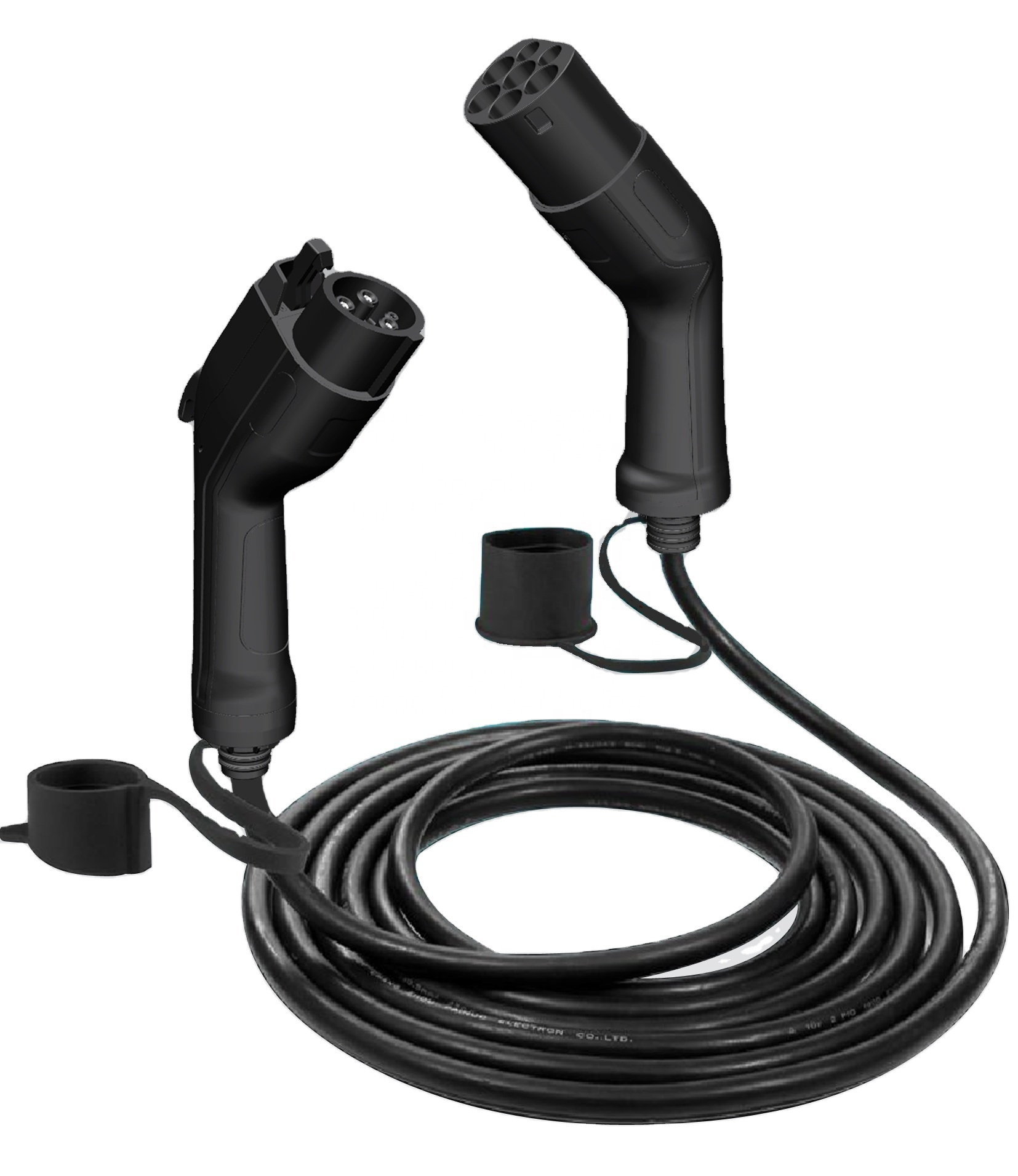

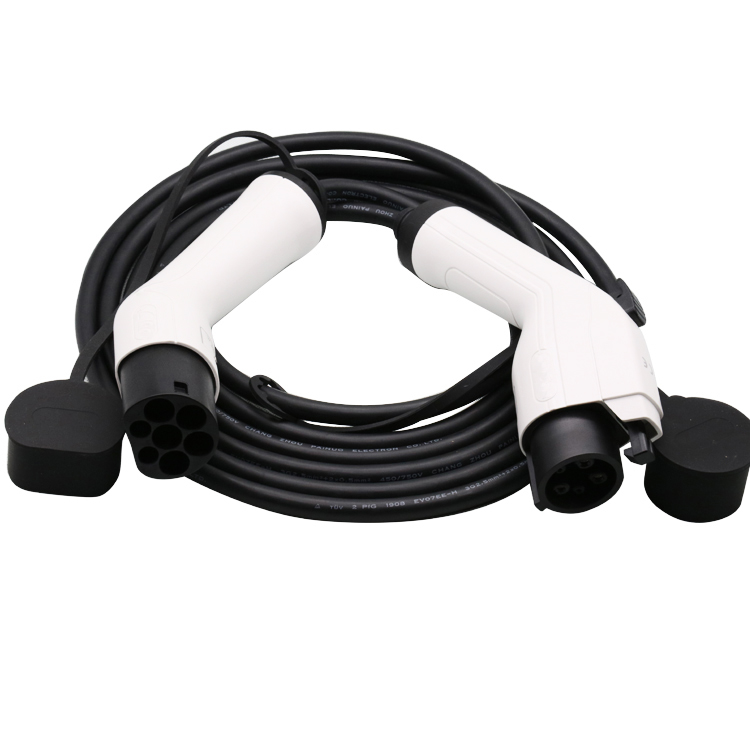

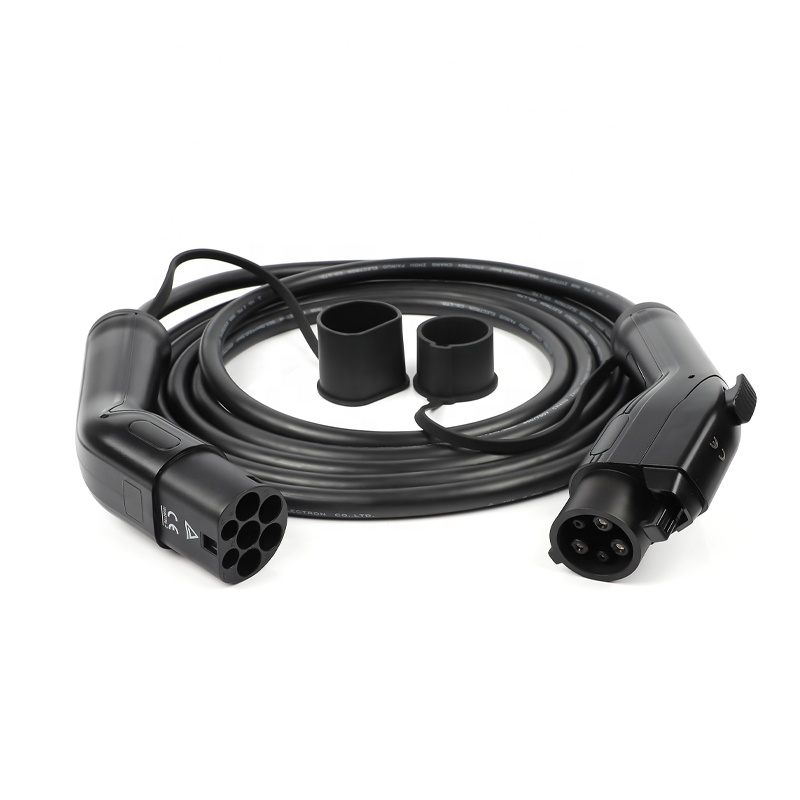

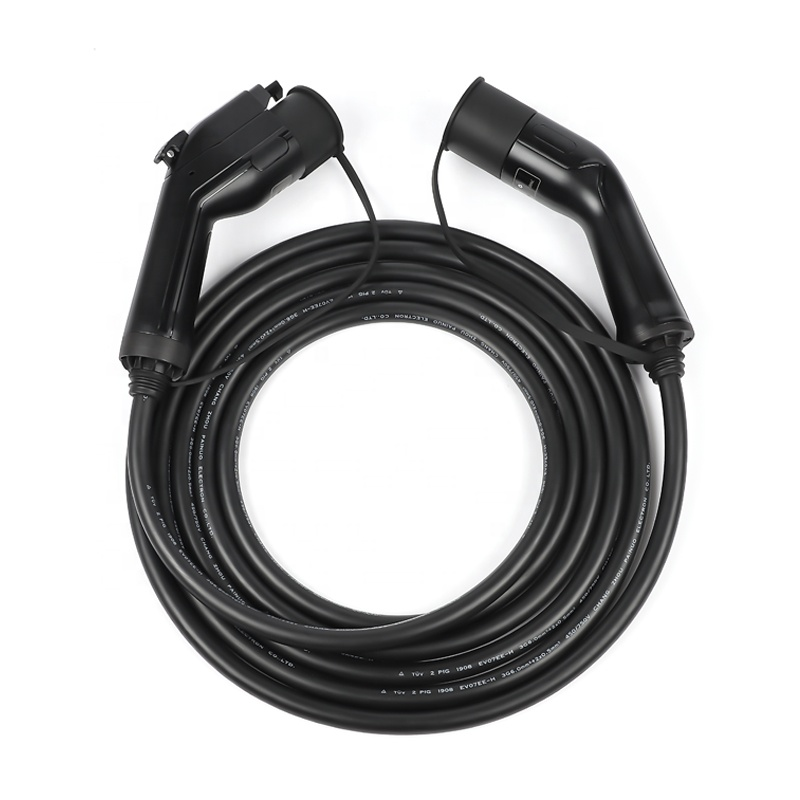

Mode 3 32A 1 Phase SAE J1772 Type 1 to Type 2 EV Charging Cable Electric Car Charging Adapter Cable

Short Description:

Electrical Performance
Model: MIDA-EVAE-16A , MIDA-EVAE-32A
Rated Current: 16A ,32Amp
Operating Voltage: 110V~250AC
Insulation Resisitance:>1000MΩ
Therminal Temperature rise:<50K
Withstand Voltage:2000V


Product Detail

FAQ

Product Tags

Item Type 1 to Type 2 EV Charging Cable

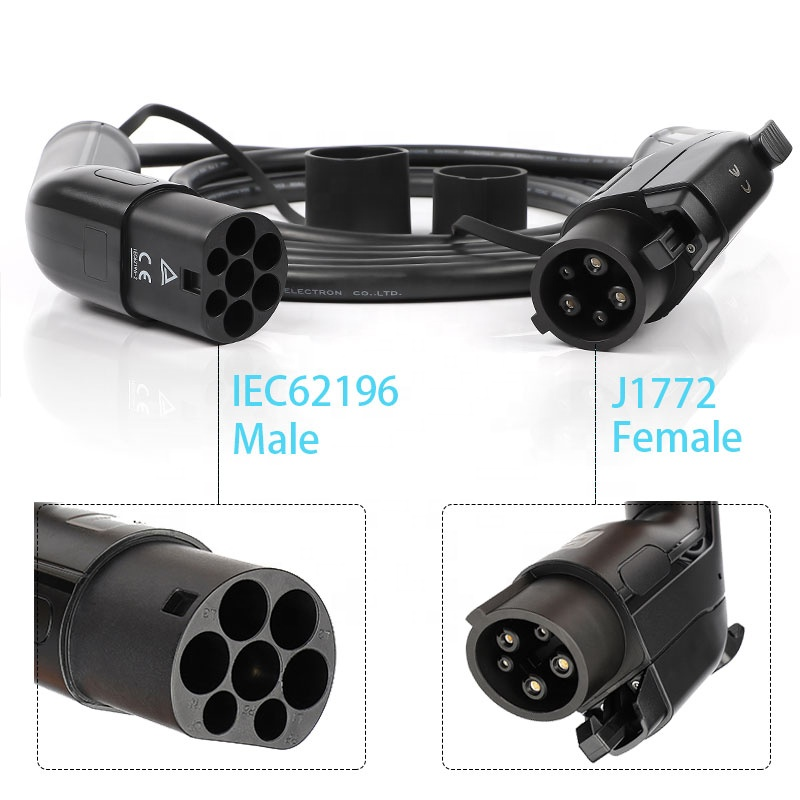

Standard SAE J1772-2010 to IEC 62196-2
Product Model MIDA-EVAE-16A MIDA-EVAE-32A
Rated Current 16/32Amp 32Amp
Operation Voltage AC  250V
Insulation Resistance >1000MΩ  ( DC 500V )
Withstand Voltage 2000V
Pin Material Copper Alloy, Silver Plating
Shell Material Thermoplastic,Flame Retardant Grade UL94 V-0
Mechanical Life No-Load Plug In  / Pull Out >10000 Times
Contact Resistance 0.5mΩ Max
Terminal Temperature Rise <50K
Operating Temperature -30°C~+50°C
Impact Insertion Force >300N
Waterproof Degree IP55
Cable Protection Reliability of materials,antiflaming,pressure-resistant,
abrasion resistance,impact resistance and high oil
Certification TUV, UL , CE Approved
Model Rated Current Cable Specification Cable Color Cable Length
MIDA-EVAE-16A 16 Amp 3 X 2.5mm² + 2 X 0.5mm² Black
Orange
Green
(5Meter ,10Meter)
The length of the cable
can be customized
3x14AWG+1X18AWG
MIDA-EVAE-32A 32 Amp 3 X 6mm²+2 X 0.5mm²
3x10AWG+1X18AWG
