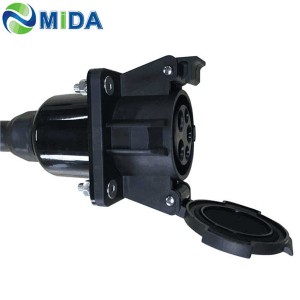

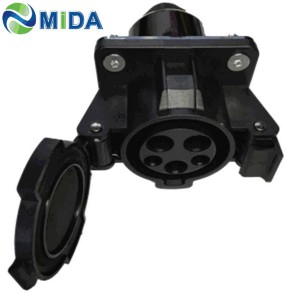

SAE J1772 Type 1 AC EV Charger Socket for Electric Car Charger Socket

Short Description:

Model: V3-DSS-EV16S ,V3-DSS-EV32S ,V3-DSS-EV40S ,V3-DSS-EV50S
1. Rated current:16A/32A/40A/50A
2. Operation voltage: 110V/240V
3. Insulation resistance:>1000MΩ(DC500V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:2000V
6. Contact Resistance: 0.5mΩ Max


Product Detail

FAQ

Product Tags

Features 1. Meet SAE J1772-2010 standard
22. Nice appearance,left flip protection,support front installation
3. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance
4. Excellent protection performance,protection grade IP44(working condition)
Mechanical properties 1. Mechanical life : no-load plug in/pull out>10000 times
2. Coupled insertion force:>45N<80N
Electrical Performance 1. Rated current:16A/32A/40A/50A
2. Operation voltage: 240V
3. Insulation resistance:>1000MΩ(DC500V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:2000V
6. Contact Resistance: 0.5mΩ Max
Applied Materials 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin:Copper alloy,silver plating
Environmental performance 1. Operating temperature: -30°C~+50°C
Model selection and the standard wiring
Model Rated current          Cable specigication       Cable Color
V3-DSS-EV16P 16Amp 3 X 2.5mm² + 2 X 0.5mm²        Orange
           or
        Black
16Amp 3 X 14AWG+1 X 18AWG
V3-DSS-EV32P 32Amp 3 X 6mm²+ 2 X 0.5mm²
32Amp 3 X 10AWG+1 X 18AWG
V3-DSS-EV40P 40Amp 2X8AWG + 1X10AWG + 1X16AWG
V3-DSS-EV50P 50Amp 2X8AWG + 1X10AWG + 1X16AWG
