RCBO Type B 2Pole 10KA 30mA 50Hz 40A 63A EKL5-63 Circuit Breaker
Type B RCBO 2Pole 10KA 30mA 50Hz 40A 63A EKL5-63 Circuit Breaker
Type B RCBO, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire and or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct type of RCBO EKL5-63B.

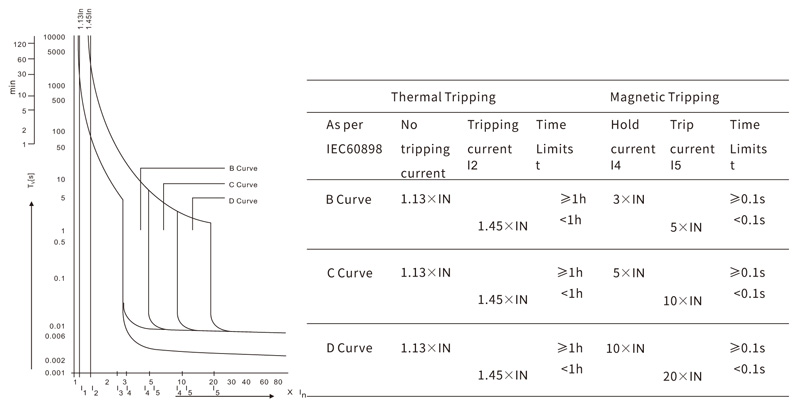

Electrical Features
| Model | EKL5-63 |
| Type(wave form of the earth leakage sensed) | B Type RCBO |
| Rated current In | 16A,20A, 25A,32A,40A,50A,63A |
| Poles | 2Pole and 4Pole |
| Rated voltage Ue | 2Pole: 230V / 240V , 4Pole: 400V / 415V |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated residual operation current(I n) | 30mA,100mA,300mA |
| Rated residual making and breaking capacity (I m) | 500(In=2540A) 630(In=63A) |
| Short-circuit current Inc= I c | 10000A |
| SCPD fuse | 10000 |
| Break time under I n | ≤0.1s |
| Rated impulse withstand voltage(1.5/50) Uimp | 4000V |
| Dielectric test voltage at ind.Freq. for 1min | 2.5kV |
| Electrical life | 2,000 Cycles |
| Mechanical life | 4,000 Cycles |
Installation
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature(with daily average≤35°C) | -5°C~+40°C |
| Storage temperature | -25°C~+70°C |
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Terminal size top/bottom for cable | 25mm2 18-3AWG |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG |
| Tightening torque | 2.5Nm 22In-lbs |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
| Connection | From top and bottom |

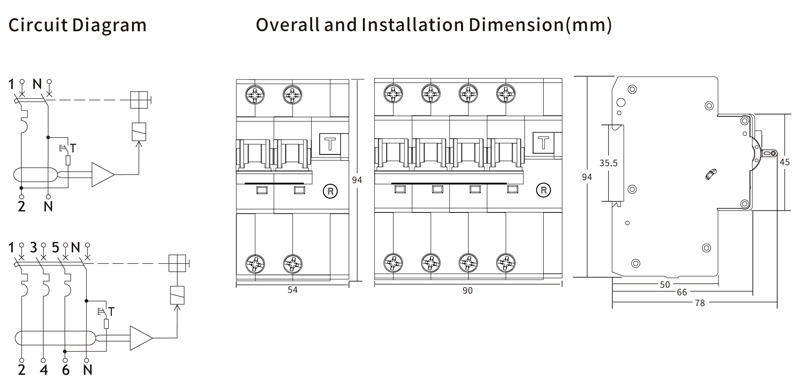

Overall and Installation Dimension(mm)
Application
EV & PV installations
Frequency converters
UPS installations
High-frequency power converters
Building site power supply cabinets
EKL1-63 Type B RCDs can detect sinusoidal AC, pulsating DC, composite of multi-frequency as well as smooth DC residual currents. In addition, tripping conditions are defined with different frequencies from 50Hz to 1kHz. In an AC electrical distribution network, a pure DC residual current can be mainly generated from three-phase rectifying circuits, but also from some specific single phase rectifiers.MIDA-80B Type B RCD are intended to be used for loads with three-phase rectifier, such as variable speed drives, PV system, EV charging station and medical equipment.
Function
Type B RCBO Circuit Breaker Control electric circuits.
Protect people against indirect contacts and additionalprotection against direct contacts.
Protect installations against fire hazard due to insulation faults.Residual current circuit breakers are used in housing, tertiarysector and industry Selection Detectable wave form
B class Tripping is ensured for sinusoidal AC residual currents pulsed DCresidual currents,
alternatingresidual sinusoidal currents up to1000Hz, pulsating direct residual EKL5-63B
currents and for smooth directresidual currents, whether applied suddenly or increasing slowly.
Tripping sensitivity 30mA -additional protection against direct contact EKL5-63B.
Tripping time Instantaneous,It ensures instantaneous tripping (without time- delay).
Construction and Feature
Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
In case of overload to protect circuit, RCCB handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually. Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity EKL5-63B
Applicable to terminal and pin/fork type busbar connection
Equipped with fi nger protected connection terminals EKL5-63B Residual Current Circuit Breaker
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity. Independent of power supply and line voltage, and free from external interference, voltage fluctuation EKL1-63B single-pole RCCB with two current paths; two-pole RCCB; three-pole RCCB; three-pole RCCB with four current paths, four-pole RCCB Current Circuit Breaker
