22KW Type 2 Tethered AC EV Charger Pedestal OCPP RFID

Short Description:

MIDA 22KW three-phase floor-standing AC EV charger with 5m Type 2 tethered cable for convenient plug-and-charge. Features 4.3" LCD, RFID, OCPP 1.6J, WiFi/4G/Ethernet, IP55 and IK08. CE certified. Perfect for outdoor public parking, workplace, and commercial charging stations.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

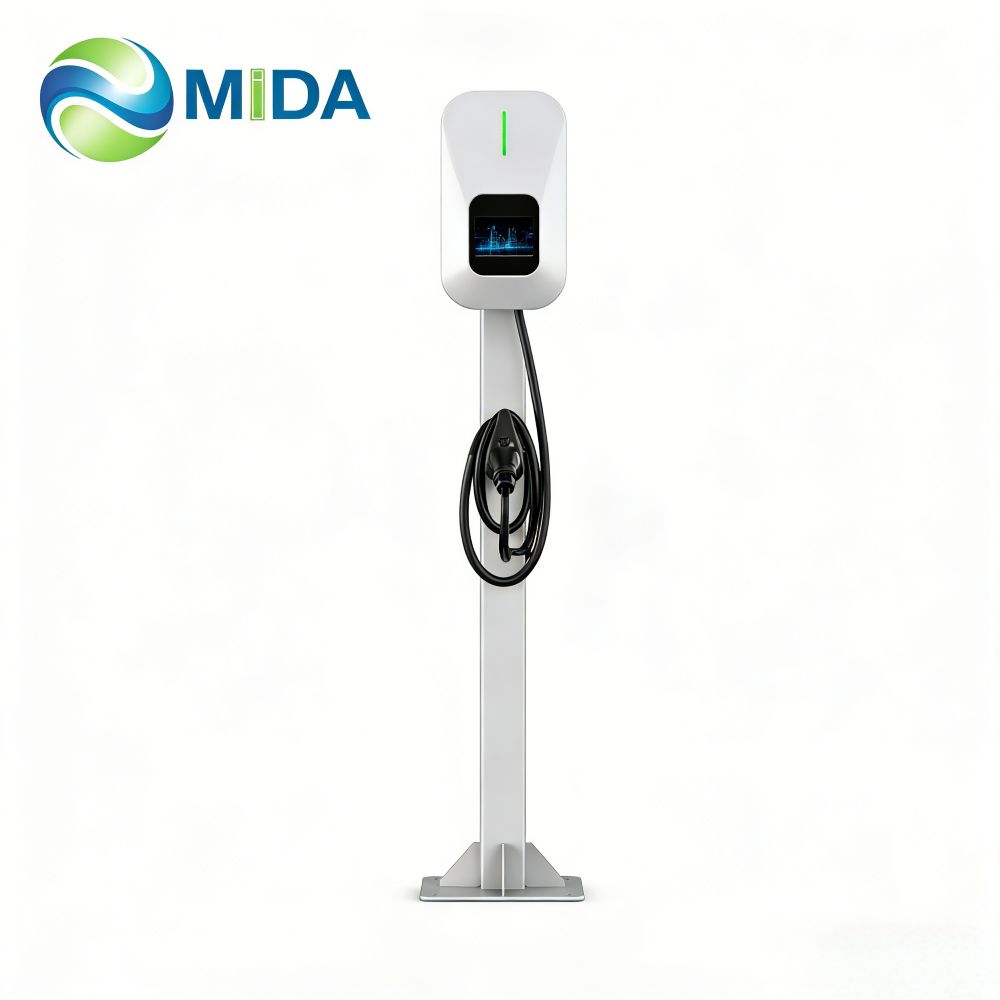

22KW Floor-Standing Tethered AC EV Charger

The MIDA 22KW Pedestal AC EV Charger is a robust floor-standing charging station with a 5-meter Type 2 tethered cable. Designed for outdoor public environments where convenience and durability matter most.

Key Features

22KW Three-Phase Charging: 400V 32A output for fast, reliable AC charging compatible with all Type 2 EVs.
5m Tethered Type 2 Cable: Always-ready charging cable — no separate cable required.
Robust Pedestal Design: Floor-standing steel pedestal with IP55 weatherproofing and IK08 impact resistance.
OCPP 1.6J Smart Integration: WiFi, Ethernet, and optional 4G with full OCPP backend support.
4.3″ LCD + RFID: Intuitive interface with card-based access control and real-time charging status.
Comprehensive Safety: Type A 30mA RCD + 6mA DC leakage, over/under voltage, short circuit, temperature protection.
All-Weather Operation: -30°C to +55°C with fanless natural cooling.
CE Certified: EN/IEC 61851-1:2017 and EN/IEC 61851-21-2:2018 compliant.

Technical Specifications

Parameter	Specification
Rated Power	22KW
Input Power	3P+N+PE, 400V AC, 50/60Hz, 32A
Output	380V AC, 32A (3-phase)
Charging Interface	Type 2 Tethered Cable (5m)
User Interface	4.3″ LCD + LED + RFID
Communication	WiFi / Ethernet / 4G
Protocol	OCPP 1.6J
RCD Protection	30mA Type A + 6mA DC
Ingress Protection	IP55
Impact Protection	IK08
Installation	Floor-standing pedestal
Operating Temperature	-30°C to +55°C
Cooling	Natural cooling (fanless)
Certification	CE (EN/IEC 61851)
Warranty	2 Years
