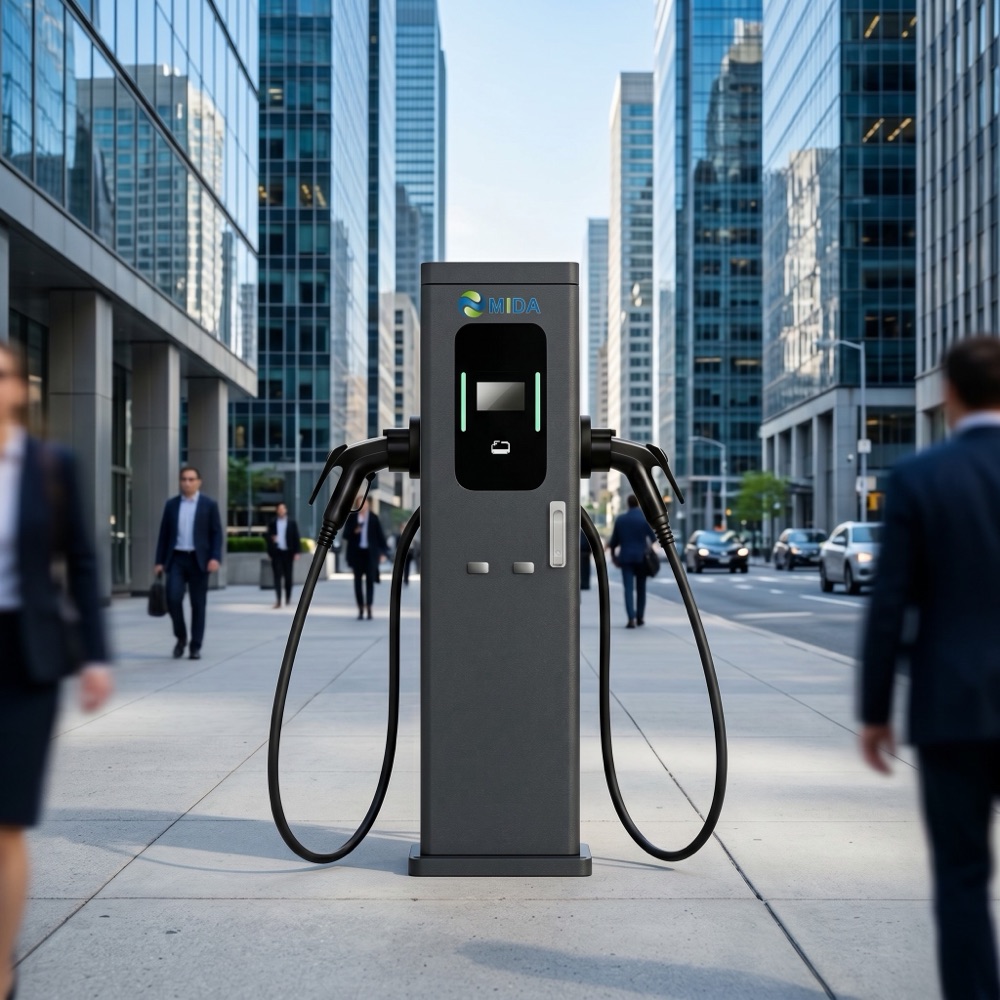

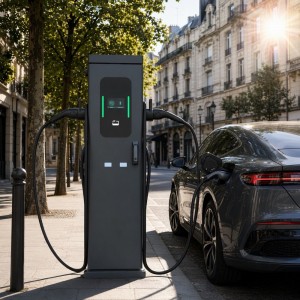

44KW Dual-Gun Floor-Standing AC EV Charger

The MIDA 44KW Dual-Gun Pedestal AC EV Charger is the ultimate high-capacity outdoor charging solution. Featuring two independent 5-meter Type 2 tethered cables, it charges two EVs simultaneously at 22KW each 鈥?doubling throughput without doubling your infrastructure footprint.

Key Features

• Dual 22KW Output: Two independent 3-phase 22KW charging channels 鈥?charge two EVs at full speed simultaneously, 44KW total.
• Two Tethered Type 2 Cables: 5m cables always ready 鈥?perfect for public-access charging.
• Independent Dual Operation: Separate RFID readers, energy meters, and session management per gun.
• 5″ LCD Touchscreen: Professional display with clear dual-gun status and real-time charging data.
• Smart OCPP 1.6J: WiFi/Ethernet/4G for remote monitoring, OTA updates, and payment integration.
• Rugged Outdoor Pedestal: Heavy-duty steel pedestal with IP55 and IK08 鈥?engineered for extreme outdoor conditions.
• Enterprise Safety Suite: Dual RCD protection (Type A 30mA + 6mA DC per channel), PE grounding detection, over/under voltage, short circuit, surge, temperature protection with auto-derating.
• Fanless Cooling: Natural convection 鈥?silent operation, zero maintenance.
• CE Certified: EN/IEC 61851-1:2017 and EN/IEC 61851-21-2:2018 compliant.

Technical Specifications

Applications

• High-traffic public charging stations
• Municipal EV infrastructure
• Commercial fleet depots
• Shopping mall parking
• Corporate campuses
• Highway rest areas
• Taxi and ride-sharing hubs
