Detailed dimensions
| Features |
| 1. Meet GB/T 20234.3-2015 regulations and requirements |
| 2. Nice appearance，hand-held ergonomic design，easy plug |
| 3. Safety pins insulated head design to prevent accidental diirecrt contact with staff |
| 4. Excellent protection performance,protection grade IP55(working condition) |
|
| Mechanical properties |
| 1. Mechanical life : no-load plug in/pull out＞10000 times |
| 2. Impat of external force: can afford 1m drop and 2t vehicle run over pressure |
|
| Electrical Performance |
| 1. Rated current：80A/125A/200A/250A/500A |
| 2. Operation voltage： 1000V |
| 3. Insulation resistance：＞2000MΩ（DC500V） |
| 4. Terminal temperature rise：＜50K |
| 5. Withstand Voltage ：3500V |
| 6. Contact Resistance： 0.5mΩ Max |
|
| Applied Materials |
| 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 |
| 2. Pin：Copper alloy,silver + thermoplastic on the top |
|
| Environmental performance |
| 1. Operating temperature：-30℃～+50℃ |
|
Model selection and the standard wiring
| Model |
Rated current |
Cable specification |

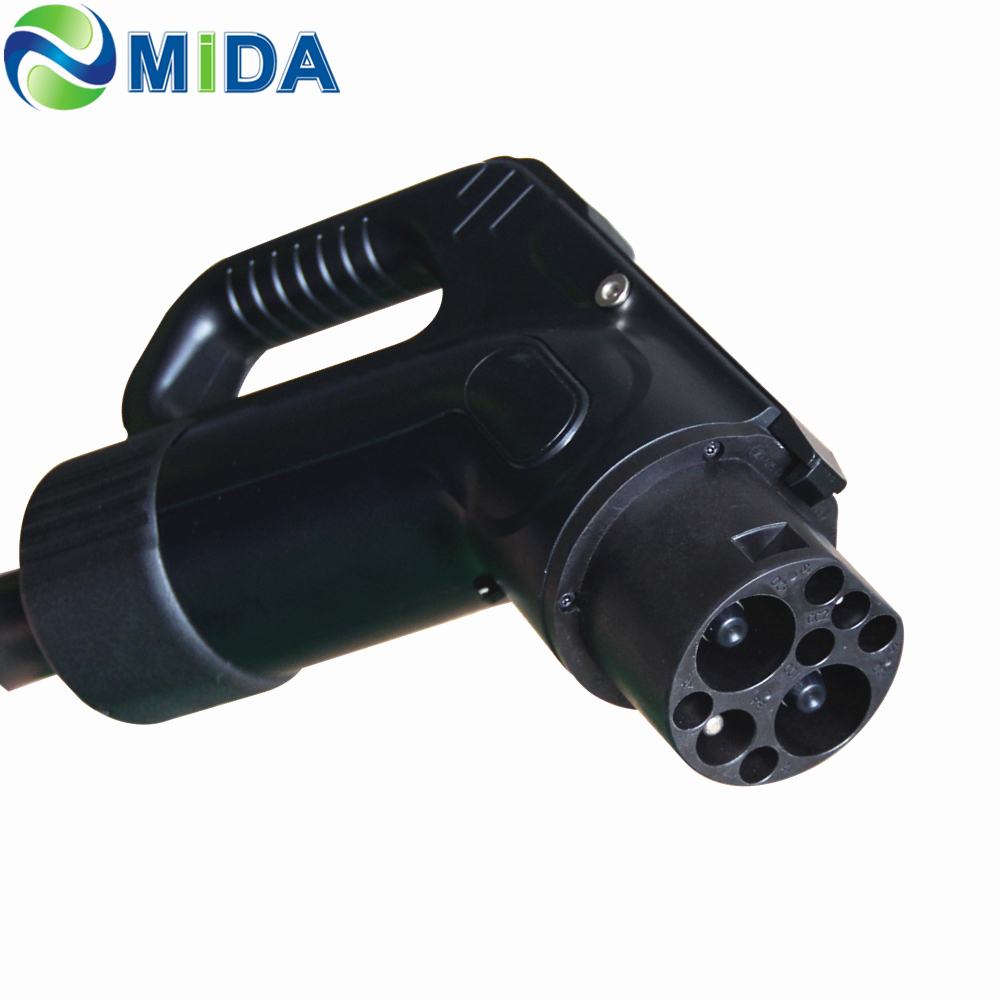

| MIDA-GBT-EV500P |
500A |
2×35 mm²
(Cooled) +1×25mm²++2*4 mm²+P(2×0.75mm²
)+2*(4×0.75mm²)
|
