Integrated 240kw Chademo Floor Mounted Evse Ip54 Waterproof With Wide Voltage 1000v For Gas Station Support Oem Odm

Short Description:

MIDA 240kW DC Fast Charging Station provides high-speed CHAdeMO charging with ultra-wide 1000V DC output. Features rugged IP54 waterproof design, intelligent OCPP 1.6J control, and user-friendly RFID/App management. Ideal for high-traffic public hubs and commercial fleets. CE & TUV certified for

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Efficient 240kW DC Fast Charging

Designed for the next generation of e-mobility, this CHAdeMO charging station delivers up to 240kW of clean power. Its modular design ensures high uptime and low maintenance costs for operators, making it the perfect choice for highway and commercial deployments.

Multi-Standard Compatibility

Full support for CHAdeMO standards, ensuring seamless connection with all modern electric vehicles. Equipped with dual-gun intelligent power sharing, it can charge two vehicles simultaneously at optimized speeds.

Industrial Grade Protection

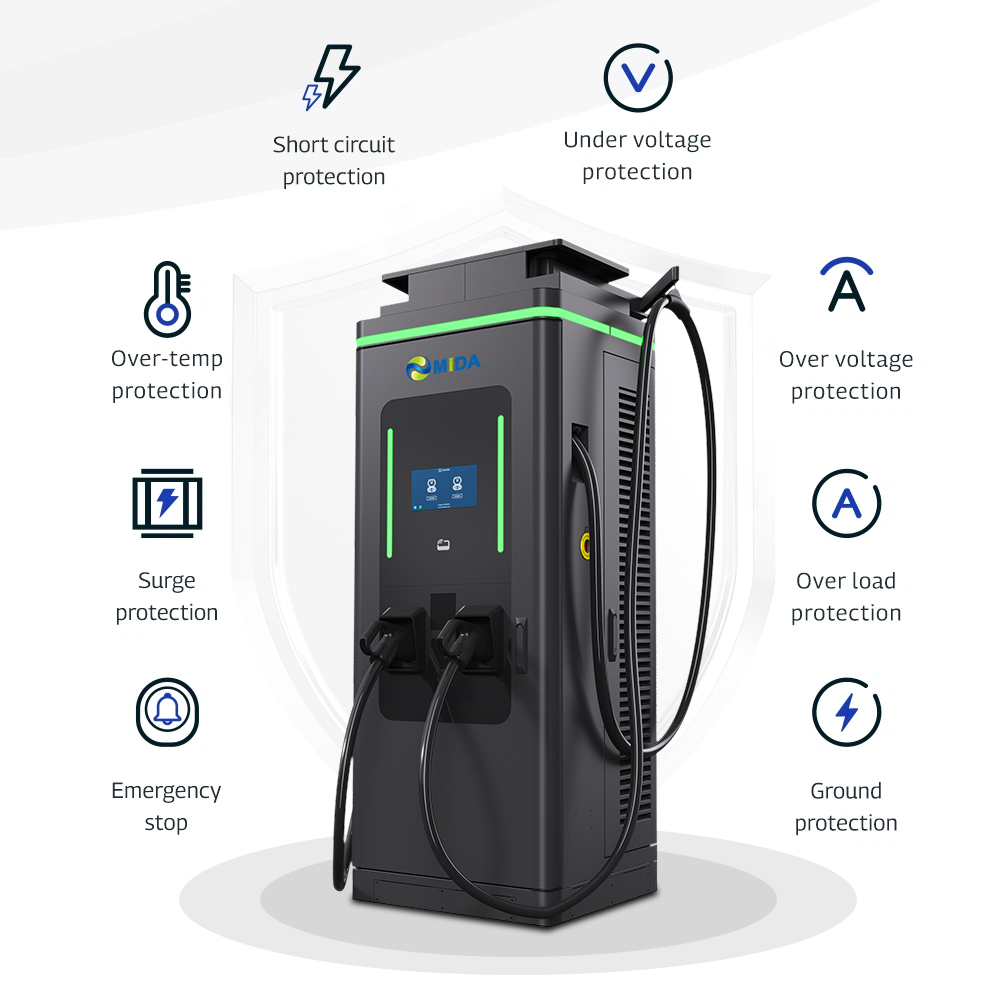

Built to withstand harsh environments with IP54 and IK10 ratings. Features an 8-layer safety protection system including over-temperature, surge, and leakage current detection for 24/7 safe operation.

Technical Specifications

Rated Power	240kW
Input Voltage	400Vac±10% (3P+N+PE)
Output Voltage	200V – 1000V DC
Max Output Current	300A
Efficiency	>95.5%% at nominal output power
Charging Interface	CHAdeMO (CCS1 / CCS2 / CHAdeMO / GB/T / NACS compatible)
Display & UI	10.1″ LCD Touch Screen + RFID + App
Communication	4G / WiFi / Ethernet (OCPP 1.6J/2.0.1 Ready)
Protocol	OCPP 1.6J / 2.0.1
Protection Level	IP54 & IK10 (Outdoor Rated)

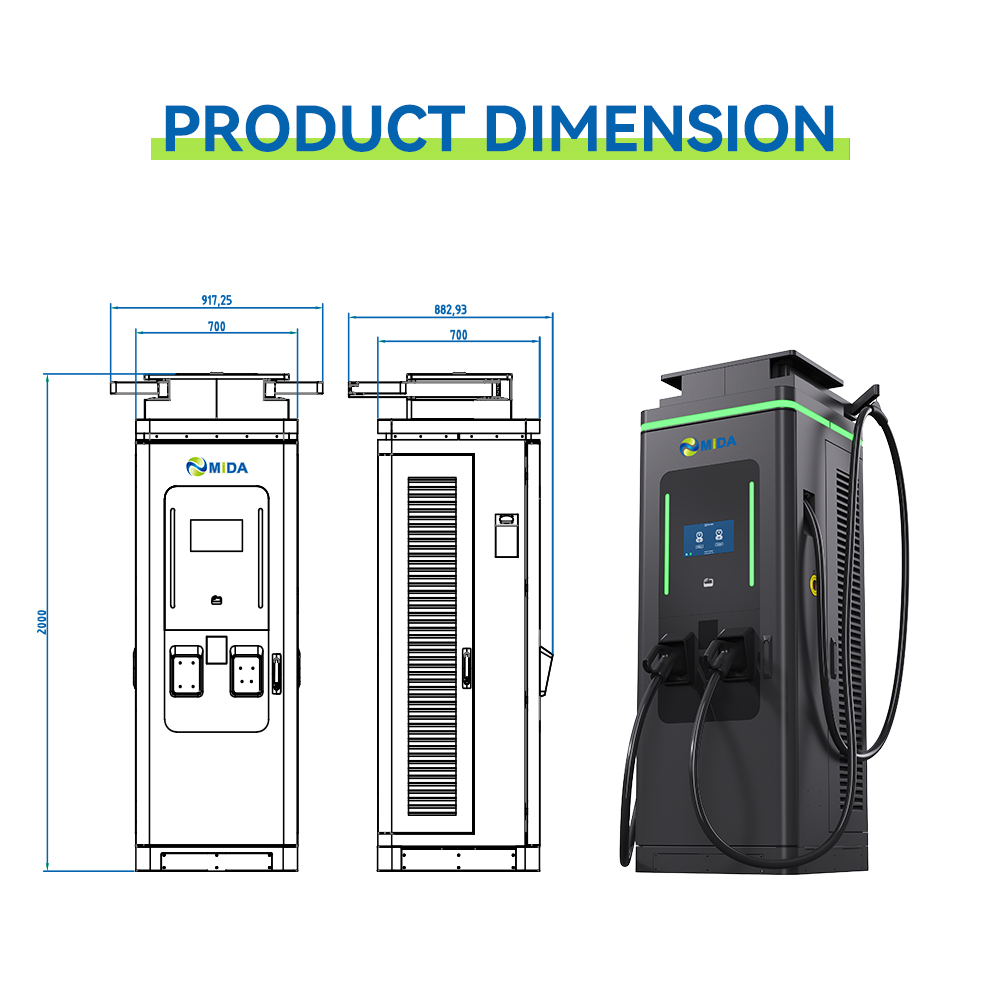

Dimensions (LWH)	7007002000mm
