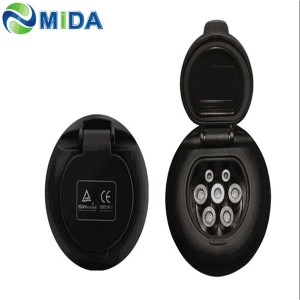

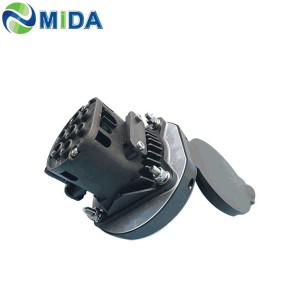

Type 2 Female EV Charging Socket for AC Charger Point Side

Short Description:

Model: DSIEC2a-G-EV16S , DSIEC2a-G-EV32S
1. Rated current:16A/32A
2. Operation voltage: 250/415V
3. Insulation resistance:>1000MΩ(DC500V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:2000V
6. Contact Resistance: 0.5mΩ Max


Product Detail

FAQ

Product Tags

Electrical Performance 1. Rated current16A/32A
2. Operation voltage 250/415V
3. Insulation resistance:>1000MΩDC500V
4. Terminal temperature rise:<50K
5. Withstand Voltage2000V
6. Contact Resistance 0.5mΩ Max
Applied Materials 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Conntact bushCopper alloy,silver plating
Environmental performance 1. Operating temperature: -30°C~+50°C
Model selection and the standard wiring
Model Rated current Cable specigication Cable Color
DSIEC2a-G-EV16S 16A Single phase 3*2.5mm² + 2*0.5mm² Orange or Black
16A Three phase 5*2.5mm² + 2*0.5mm² Orange or Black
DSIEC2a-G-EV32S 32A Single phase 3*6mm²+ 2*0.5mm² Orange or Black
32A Three phase 5*6mm²+ 2*0.5mm² Orange or Black
