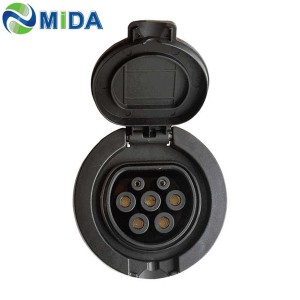

Type 2 Female EV Charging Socket for AC Charger Pile
| Electrical Performance | 1. Rated current：16A/32A | ||||||||
| 2. Operation voltage： 250/415V | |||||||||
| 3. Insulation resistance：＞1000MΩ（DC500V） | |||||||||
| 4. Terminal temperature rise：＜50K | |||||||||
| 5. Withstand Voltage：2000V | |||||||||
| 6. Contact Resistance： 0.5mΩ Max | |||||||||
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 | ||||||||
| 2. Conntact bush：Copper alloy,silver plating | |||||||||
| Environmental performance | 1. Operating temperature: -30°C~+50°C | ||||||||
| Model selection and the standard wiring | |||||||||
| Model | Rated current | Cable specigication | Cable Color | ||||||
| V2-DSIEC2a-G-EV16S | 16A Single phase | 3*2.5mm² + 2*0.5mm² | Orange or Black | ||||||
| 16A Three phase | 5*2.5mm² + 2*0.5mm² | Orange or Black | |||||||
| V2-DSIEC2a-G-EV32S | 32A Single phase | 3*6mm²+ 2*0.5mm² | Orange or Black | ||||||
| 32A Three phase | 5*6mm²+ 2*0.5mm² | Orange or Black | |||||||
